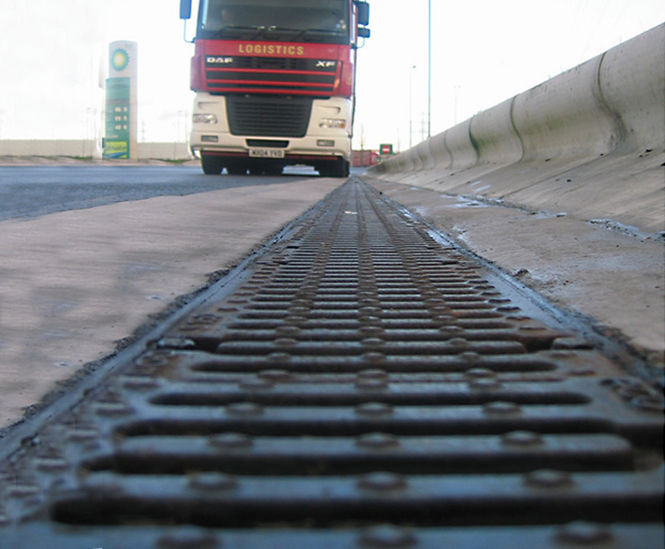

ACO S Range is a channel drainage system designed to provide efficient removal of surface water in heavy-duty applications.

Manufactured from ACO's high-strength recycled polymer concrete, ACO S Range is a tough channel drainage system with excellent chemical resistance.

Integral cast iron edge rails provide maximum protection for the channel body.

Channel widths

  • 100mm

  • 150mm

  • 200mm

  • 300mm

Channel depths

Constant and sloping depth channel options for optimum performance and system design.

Channel gratings

ACO S100 system

4 channel grating options:

  • Slotted gratings

  • Heelguard™ gratings

  • Intercept gratings

  • Solid cover ductile iron gratings

ACO S150, S200 and S300 systems

  • Slotted ductile iron gratings

Lockable bolts

All ACO S Range gratings come complete with bolts to ensure gratings can be locked and accessed when required.

Certification

Load Class F900 certified

The system is fully certified to BS EN 1433: 2002 up to and including Load Class F 900 applications - suitable for extremely high wheel loads including ports, docks and aircraft pavements.

Features

  • Traditional channel and grating drainage system

  • Four channel widths: 100, 150, 200 and 300mm

  • Manufactured from strong, lightweight recycled material

  • Integral cast iron edge rails provide maximum strength and protection for channel body

  • Constant and sloping depth channels available

  • Interconnecting channel end detail to aid alignment during installation

  • Channel units have base knockouts for connection to Ø110mm (S100), Ø160mm (S150 and S200) and Ø200mm (S300) U-PVC pipes

  • Fully certified to BS EN 1433: 2002 Load Class F 900

Benefits

  • Strong and robust design for demanding heavy-duty applications

  • Suitable for heavy-duty applications including aircraft pavements, ports and docks

  • Cast-in iron edge rails and heavy-duty gratings improve the inherent strength of the system

  • ACO S100 has a choice of slotted, heelguard, intercept and solid cover gratings

  • All gratings come complete with locking bolts

  • Caters for a wide variety of catchment depths and hydraulic capacities

  • Sump and gully outlets available for connection to underground drainage
