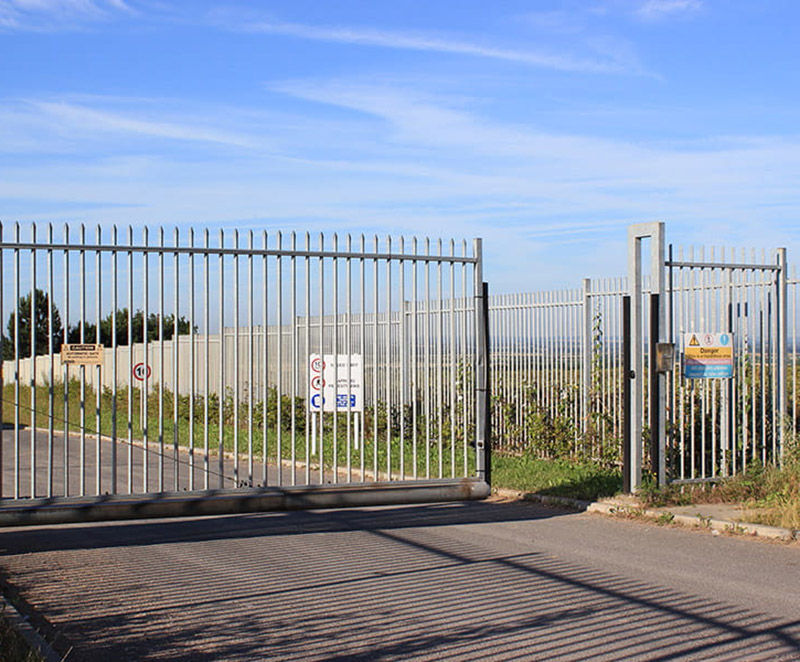

Vertical bar gates are a perfect match to vertical bar security fencing, sharing the principal design features of Jacksons welded semi pale-through-rail styles, such as Barbican and Sentry.

Key features

Available in a range of standard widths up to 12m and heights to 3m for pedestrian and vehicular access
Single gates are supplied as right hand hanging, opening inwards (unless specified) and are complete with key in lock, handles and stop

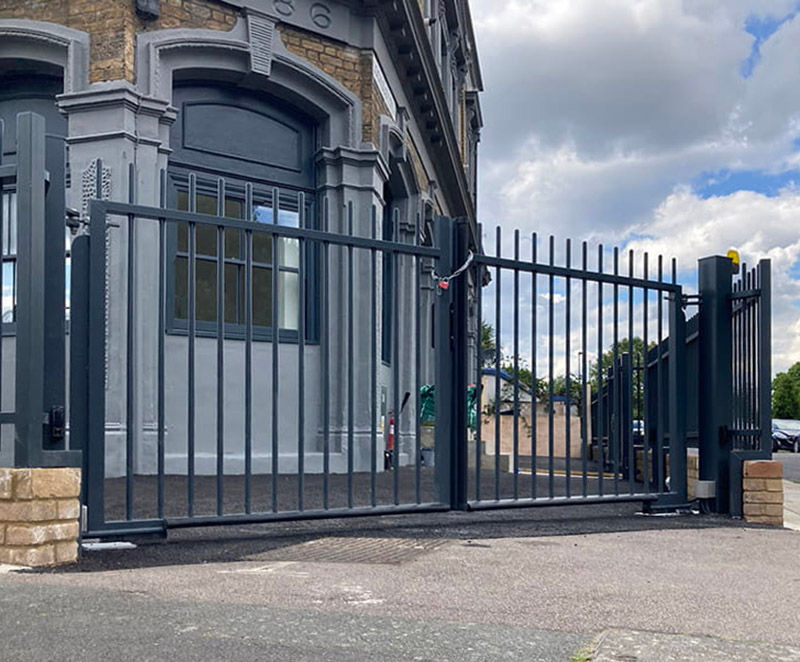

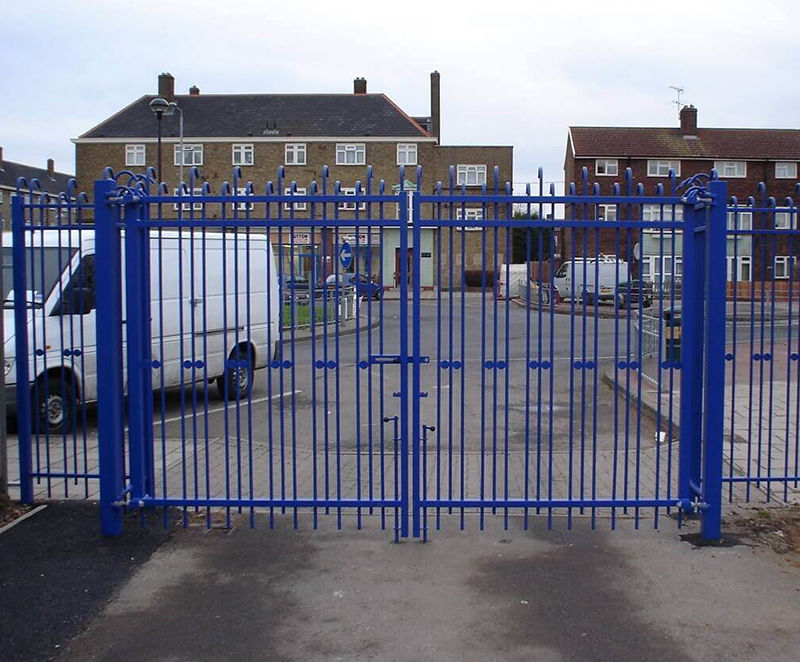

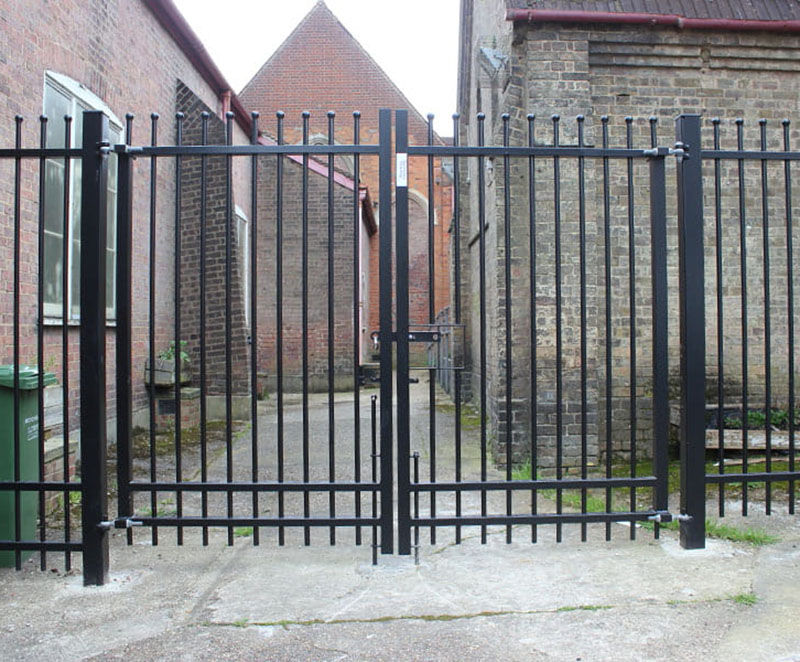

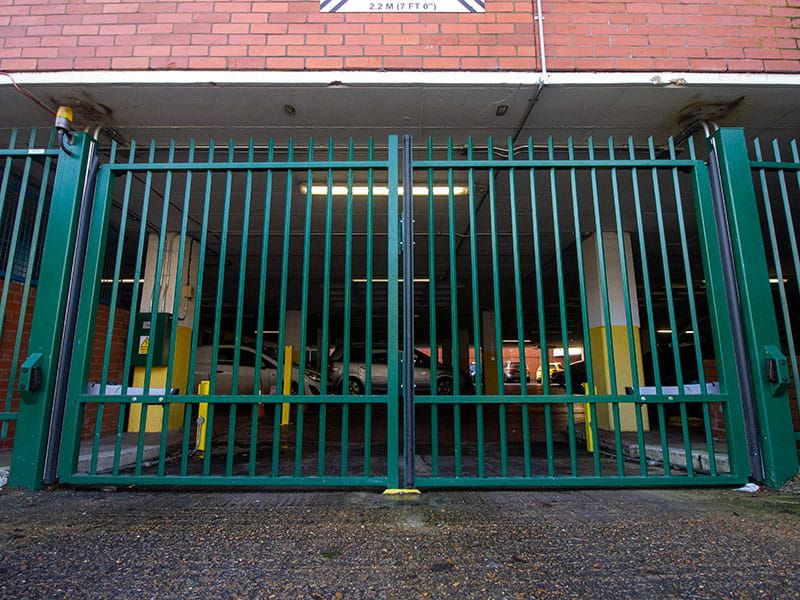

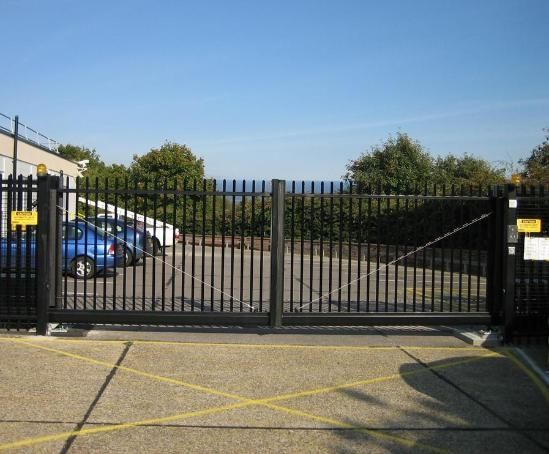

Double gates are supplied complete with key in lock, handles, centre gate stop and drop bolts
180° opening, adjustable, tamper-proof hinges
2 or 3 rail design subject to leaf width
Gates over 3.5m long feature additional diagonal bracing struts
60mm x 40mm rails
60mm x 60mm stiles with 2mm wall thickness
Square section posts at 100mm120mm and 150mm subject to size of gate
Gate posts supplied to allow 800mm in ground or with base plates for bolting onto concrete
Pale spacing conforms to Building Regulations for anti-trap
Can be extended in height to carry barbed wire, Rota-Spike or other high security extras

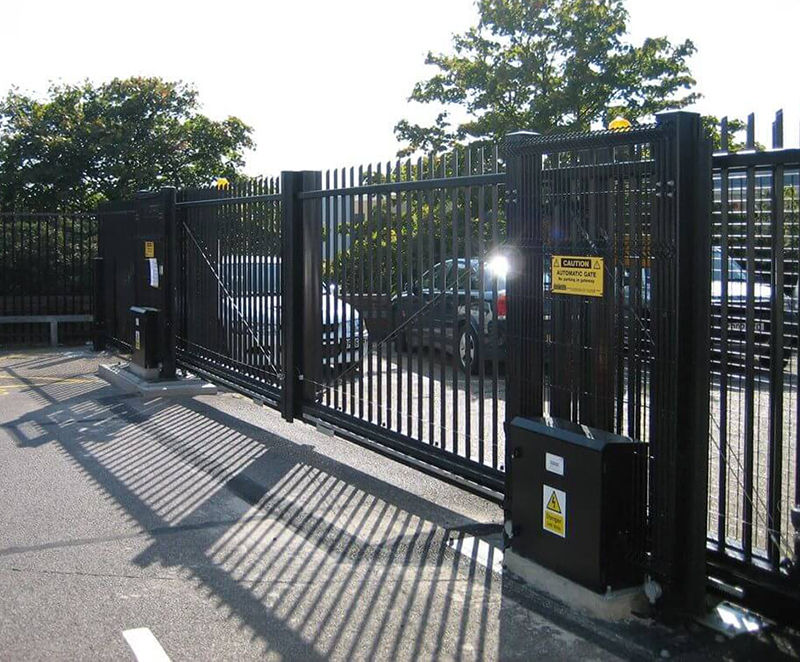

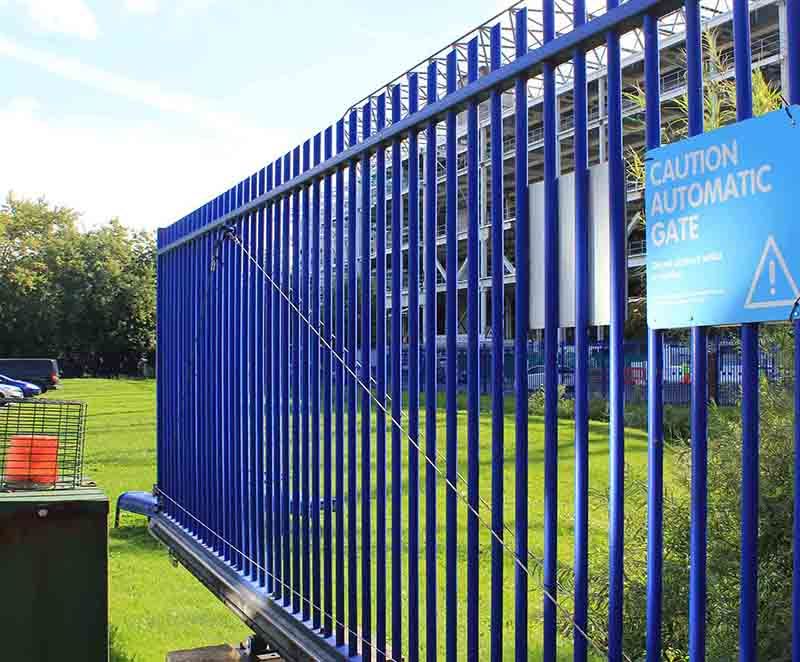

Suitable for automated operation

Standard Finishes

Hot dip galvanised to BS EN 1461 as standard
Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
Powder coating to non standard BS or RAL to special order
Marine coating for applications near sea water (optional extra)

Standard Colours

Black RAL 9005
Green RAL 6005
Grey RAL 7012
Blue BS 20-C-40
Blue RAL 5010
Red RAL 3020
Yellow RAL 1018
Brown RAL 8017
White RAL 9010
Other colours are available on request
