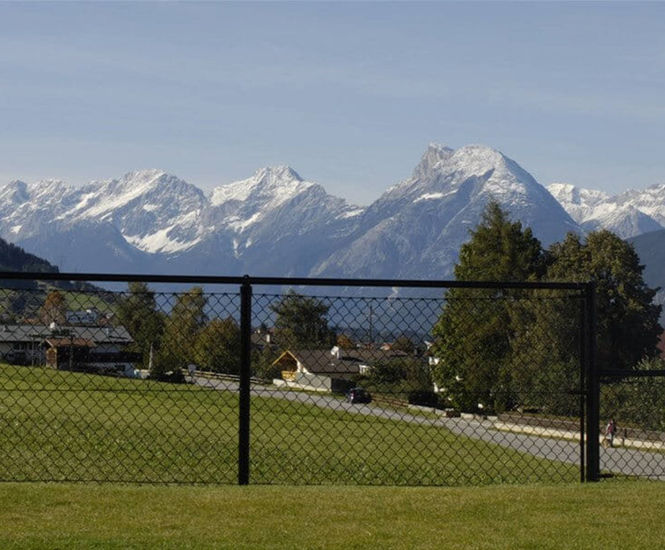

Jacksons tubular systems for chain link and welded mesh fencing feature a top rail for added security and strength.

Key features

  • Hollow tubular construction

  • Top rail as standard on system 3, 4, 5 & 6 to prevent sagging

  • Tubular construction for rigidity and ease of installation

  • Suitable for cladding in a variety of chain link or welded mesh, types to suit application

  • Ideal for numerous applications from ball courts and perimeter demarcation to contemporary residential settings

  • Full range of matching gates available

  • BS 1722 PART 10

Standard finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard

  • Hot dip galvanised and powder coated to BS EN 13438

  • Marine coat for installations within 500m of salt water or an estuary

Posts and rails are made from hot dip galvanised steel as standard, or galvanised and powder coated steel at extra cost.

Six variations are available to suit wide variety of applications from ball courts and perimeter demarcation to contemporary residential settings.

System 1
0.9-3.6m high
For medium- and heavy-duty applications.

System 2
1.8-3.6m high
Posts vertically extended for three rows of barbed wire.
For heavy-duty applications.

System 3
0.9-3.6m high
Heavy-duty posts.
Will not suffer deformation when climbed over.

System 4
1.8-3.6m high
Heavy-duty posts.
Vertical extensions for three rows of barbed wire.

System 5
1.8-3.6m high
Heavy-duty posts.
Cranked intermediate extensions for three rows of barbed wire with struts for securing cranked extensions on posts.

System 6
1.8-3.6m high
Heavy-duty posts and Y extensions for six rows of barbed wire.
