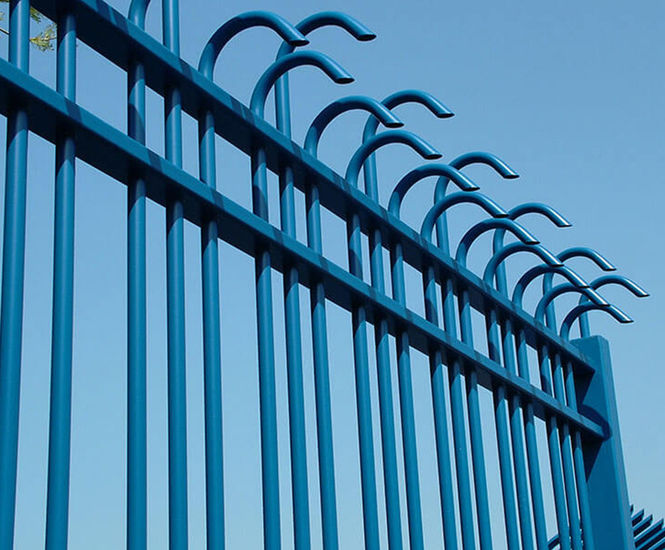

Tri-Guard - vertical bar fencing systems

Tri-Guard features pales with curved tops, set in clusters of three, joined by feature steel discs to create a decorative appearance while maintaining anti climb and anti scale functionality.

Provides a complete high-security fencing and access system, which can be designed around any terrain.

Welded, post-mounted spikes ensure that the integrity of the fence is maintained. Designed for low maintenance and low whole-life costs, the fencing system has a 25 year service life guarantee.

Dimensions

• Overall height 2.25, 2.5m

• Wire / bar / pale size 19mm round

• Post centres 3000mm

• Post sections 80x60mm

Features

• Fully welded, tubular pale-through-rail construction

• Seamless, concealed rail-to-post fixing

• Anti-climb design with curved spike on post top

• Pale spacing conforms to Building Regulations for anti-trap

• All powder coated products are first hot dip galvanised then hand-fettled for a high-quality finish

• Posts, pales and rails are galvanised to BS EN 1461 as standard, or galvanised and powder coated to BS EN 13438 in standard colours at extra cost

• Powder coating to any other BS or RAL colour to special order

• 2.2m and 2.5m heights

• Can be stepped to accommodate sloping ground

• Matching swing and sliding gates available.

Standard Finishes

• Hot dip galvanised to BS EN 1461 as standard

• Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost

• Powder coating to non standard BS or RAL to special order

• Marine coating for applications near sea water (optional extra)

Tri-Guard® Panel Specifications
