Jacksons Fencing



Jakoustic® Reflective acoustic fencing

Jakoustic® Reflective barriers can be constructed with timber posts to a height of 4m. Panels are heavy section planed timber board constructed so that...

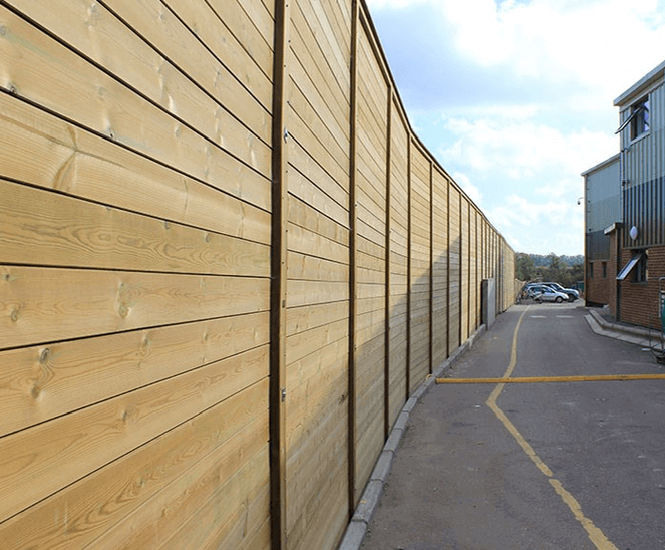

  Jakoustic® Reflective - Acoustic Fencing
Click for full image

  • Jakoustic® Reflective - Acoustic Fencing
  • 6m High Jakoustic® Reflective with bespoke timber I-bea
  • Jakoustic® Reflective - Acoustic Barrier for Housing
  • Jakoustic® Reflective Highway
  • Jakoustic® Reflective - Commercial & Highway
  • Jakoustic® Reflective - Noise Barrier
  • Run of Jakoustic® Reflective noise-reducing barrier
  • Jakoustic® Reflective acoustic fencing
Jakoustic® Reflective - Acoustic Fencing
1/12

Suitability Industrial property
Residential property
Transport network
Tunnels / subways
Finish material Timber / wood
Absorbent / reflective Sound reflective
Product accreditation BS EN 1793-1:1998
Support services CAD
Design
Installation
Site survey
Dimensions (w x h) 2, 2.5, 3.0. 3.5 or 4m high
Laboratory sound reduction (dB) 28dB




Jakoustic® Reflective barriers can be constructed with timber posts to a height of 4m. Panels are heavy section planed timber board constructed so that gaps that sound can travel through are eliminated. They are suitable for domestic, commercial and construction sites.

  • B3 acoustic fence, 28dB sound reduction
  • Unique tuning fork design posts
  • Attractive timber structure with a planed finish throughout
  • Anti climb design and scale design
  • High privacy barrier
  • Special fixings clamp the acoustic boards between posts
  • Can accommodate changes in level or profile
  • Complete with capping and counter rail
  • Matching swing and sliding gates can be manufactured
  • Jakcure® treated timber as standard

Dimensions

Fence heights: 2000, 2500, 3000, 3500, 4000mm
Post centres: 2410mm
Post lengths: height + 900mm

Performance

Certified laboratory results:

  • Rating according to BS EN 1793-2:1998
  • B3 category
  • Laboratory sound reduction of 28dB
  • Superficial mass of 28kg/m2

All Jakoustic® fencing comes with Jacksons' 25-year Jakcure guarantee and is ISO accredited.


Jakoustic® Reflective barriers can be constructed with timber posts to a height of 4m. Panels are heavy section planed timber board constructed so that gaps that sound can travel through are eliminated. They are suitable for domestic, commercial and construction sites.

  • B3 acoustic fence, 28dB sound reduction
  • Unique tuning fork design posts
  • Attractive timber structure with a planed finish throughout
  • Anti climb design and scale design
  • High privacy barrier
  • Special fixings clamp the acoustic boards between posts
  • Can accommodate changes in level or profile
  • Complete with capping and counter rail
  • Matching swing and sliding gates can be manufactured
  • Jakcure® treated timber as standard

Dimensions

Fence heights: 2000, 2500, 3000, 3500, 4000mm
Post centres: 2410mm
Post lengths: height + 900mm

Performance

Certified laboratory results:

  • Rating according to BS EN 1793-2:1998
  • B3 category
  • Laboratory sound reduction of 28dB
  • Superficial mass of 28kg/m2

All Jakoustic® fencing comes with Jacksons' 25-year Jakcure guarantee and is ISO accredited.
