- System type
- Netting systems
- Overall height
- 4 to 9m
- Post centres
- 3m
- Post sections
- 60.3mm CHS

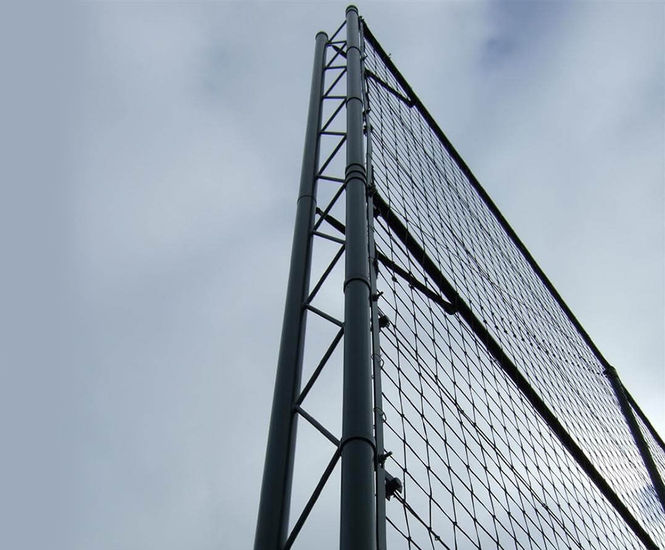

Jacksons’ ball stop fencing systems are ideal for cricket and golf boundary applications. They reduce the risk of injury, damage or trespass, whilst maintaining general visibility.
Double lattice post design provides a structure strong enough to allow sports webbing/mesh to remain in place through-out the year.
Features
Extra strength lattice posts
Top rail as standard
Hollow tubular construction
Optional stainless steel tensioning wires top and bottom of webbing / mesh
Tubular construction for rigidity and ease of installation
Wide range of webbing and mesh types available to suit different applications
Top rail for added stability and to prevent mesh from sagging
Lightweight and easy to install
‘Taut' webbing / netting structure
Suitable for polypropylene webbing, chain link and steel mesh infill
Universal frame for various applications from rugby pitch to golf driving range
Standard Finishes
Hot dip galvanised to BS EN 1461 as standard
Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
Powder coating to non standard BS or RAL to special order
Marine coating for applications near sea water (optional extra)
Ball Stop Netting Specifications
Height (mm) |
Post Centres (mm) |
Post Dimensions (mm) |
Overall Post Length* (mm) |
4000 |
3000 |
60.3 Ø |
4150 |
5000 |
3000 |
60.3 Ø |
5150 |
6000 |
3000 |
60.3 Ø |
6150 |
7000 |
3000 |
60.3 Ø |
7150 |
8000 |
3000 |
60.3 Ø |
8150 |
9000 |
3000 |
60.3 Ø |
9150 |
