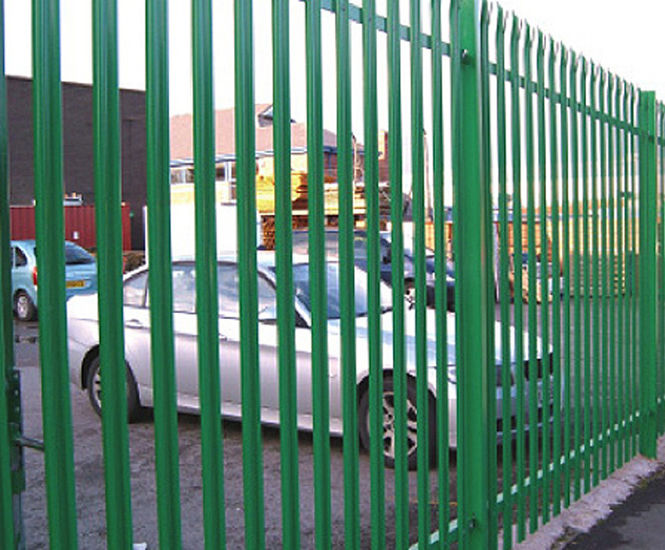

Standard palisade fencing
Standard palisade fencing has a strong and durable construction. It provides excellent protection against climbing and cut-through for most sites. Standard palisade fencing can be manufactured in either a 'D' or 'W' profile to varying specifications. Single pointed, triple pointed, square tops or round and notched tops. 'W' profile 2.0mm
Click for full image
Standard palisade fencing
Product details
System type
Steel palisade systems
Product accreditation
BS 1722-12
Overall height
1.2 - 3.0m
Wire / bar / pale size
2.0, 2.5 or 3,0mm pale thickess
Standard palisade fencing has a strong and durable construction. It provides excellent protection against climbing and cut-through for most sites.
Standard palisade fencing can be manufactured in either a 'D' or 'W' profile to varying specifications.
Paling tops
Single pointed, triple pointed, square tops or round and notched tops.
Paling thickness
'W' profile 2.0mm - commercial specification 'W' profile 2.5mm - general purpose to BS 1722 Pt 12 'D' profile 3.0mm - general purpose to BS 1722 Pt 12
Horizontals
4 standard sizes according to height and site requirements.
Posts
Available with welded fishplates or slotted
Complete with loose fishplates that can be concreted-in, base plated for bolting down or cranked.
Can be vertically extended for barbed or razor wire.
Panels
Panels can be easily raked to allow for most site conditions.
