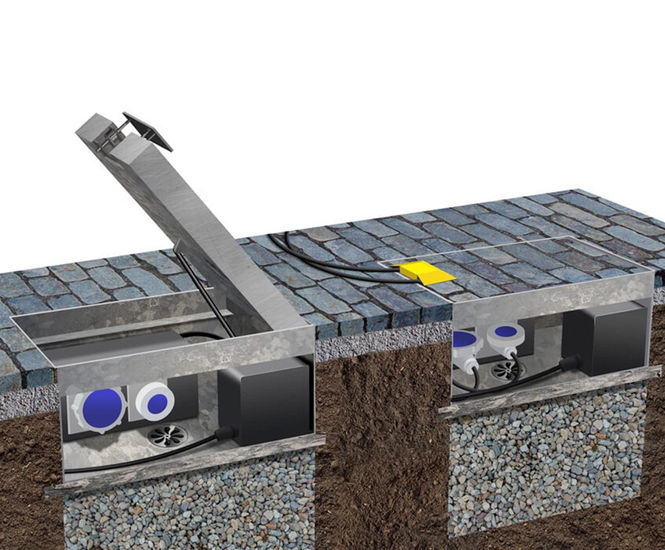

Round the clock power for days, weeks or months because our In-ground units operate with the lid locked down, with only the power cable protruding, the potential for damage is minimised.
In-ground units can be used in smaller spaces to supply outdoor power and telephone connection. They have a double locking lid and can be operated with the lid locked down. The lids are raised manually and are gas strut assisted.
Pop Up Power Supplies Ltd® are your one-stop-shop for all your outdoor power requirements.

The IGU is especially suitable for festive lights or Christmas trees, which require power over an extended time, and for which a pop-up unit is inappropriate; a pop-up unit needs to be raised for long periods of time, which makes it susceptible to weather and vandalism.

Key features

  • Submerged in the ground - access via a hinged lid

  • Locked down while cables are connected

  • Unit depths from 250mm to 550mm

  • Galvanised high grade steel plate

  • Sockets available 16, 32, 63 and 125 amps

  • RJ45 data connections available in PUPS02 and PUPS03 units only

  • Can match their surroundings

Ranges available

SLIM

250mm deep Profile size 386mm x 570mm, Internal depth of cover 60mm Cover type: Recessed cover to accept paving – covers tested unfilled to EN124 B125 load classification (Pedestrian Precincts, Forecourts, Commercial Delivery & Parking areas). Structure: Galvanised high grade structural steel plate

  • Can be used in smaller spaces to supply electricity.

  • Double locking lid – can be operated with lid locked down.

  • Lid raised manually – gas strut assisted.

NOTE: The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67

PUPS 03

Total power 63 amps single or 3 phase incoming supply. Can be used to supply electricity, gas and telephone. Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).

  • Total power 63 amps single or 3 phase incoming supply.

  • Can be used to supply electricity, gas and telephone.

  • Lid raised manually – gas strut assisted.

  • Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).

NOTE: The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.

PUPS02 - 4040

Total power 32 amps single supply. Supplies electricity for public places. Operates unattended with the lid locked down, with only the power cable protruding.

  • Total power 63 amps single or 3 phase incoming supply.

  • Can be used to supply electricity, gas and telephone.

  • Lid raised manually – gas strut assisted.

  • Raised SEMI-AUTOMATIC with gas piston (suitable for use in HGV areas).

NOTE: The unit is not water tight, it has no IP rating. Electrical equipment installed has a rating of IP67.

PUPS02 - 5050

  • Power distribution and other services; totally hidden even in operation overall depth of unit 450mm.

  • Cover in stainless steel, recessed to fill with matching surface finish, or closed; cover size 570 x 570mm opening facilitated by a pivot partially pull-out from the lid surface, and a dual gas actuator.

  • Overall depth of unit 550mm. Operates with the cover closed and with plug inserted (max 1 x 63A), through a special rubber door for cable outlet.

  • Cover secured in closed position by safety bayonet lock in bronze, with lever lock in stainless steel AISI 304 operated with key (square footprint).

  • Removable stainless steel plate for electrical equipment support (provision for grounding in this case).

PUPS02 - 7050

Total power 125 amps single supply. Supplies electricity and data points to public places. Operates unattended with the lid locked down, with only the power cable protruding.

  • Power distribution and other services.

  • Cover in stainless steel, recessed to fill with matching surface finish – cover size 700 x 500mm opening facilitated by a pivot, partial pull-out from the lid surface, and a dual gas actuator.

  • Operates with the cover closed and with plug inserted (max 1x125A), through a special rubber door for cable outlet.

  • Cover secured in closed position by safety bayonet lock in bronze, with lever lock in stainless steel AISI 304 operated with key (square footprint).

  • Removable stainless steel plate for electrical equipment support (provision for grounding in this case).
