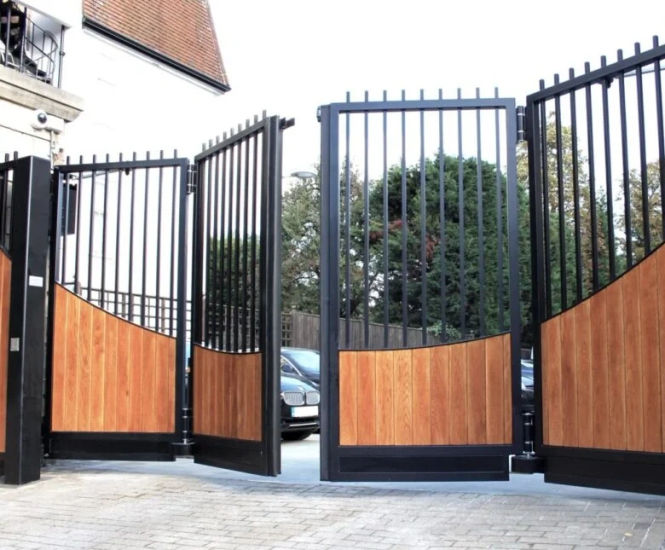

The 10605 trackless bi-folding speed gate has an open/close cycle time of 6 - 14 seconds.

Manufactured from mild steel and available in a choice of styles that can blend seamlessly into any environment.

The 10605 does not require a track. It is driven by a crank arm that rotates through 270°. This, together with an electromagnetic brake, locks the gate in both open and closed positions.

Bi-folding method of gate operation requires less power than conventional swing gates, and is also less affected by the wind.

Gate leaf sections are fully welded assemblies, infilled with closely spaced vertical bars or other infills as required.

Single units are capable of spanning 3.5m wide (standard drive), 5.0m wide (hydraulic drive) and bi-parting leaves are 7.0m wide (wide standard drive).

Controls are PLC-based and can be easily configured to suit customer requirements.

Materials

  • Drive: electromechanical or hydraulic through a 270° system

  • Hinges: 25mm ø stainless steel pins,

  • Leaf folding mechanism: rack and pinion system

  • Gate structure: mild steel

DIMENSIONS

  • Single Unit Maximum Width: 5000mm

  • Single Unit Maximum Height: 3000mm

  • Bi-Parting Pair Maximum Width: 10,000mm Bi-Parting Pair

  • Maximum Height: 3000mm

Features:

  • Manufactured to any entrance size

  • Mechanical locking with manual or automatic controls

  • Operates at low & high weather extremes

  • Hand built in the UK

  • Warranty, service and maintenance available

  • Now certified to the loss prevention standard LPS 1175
