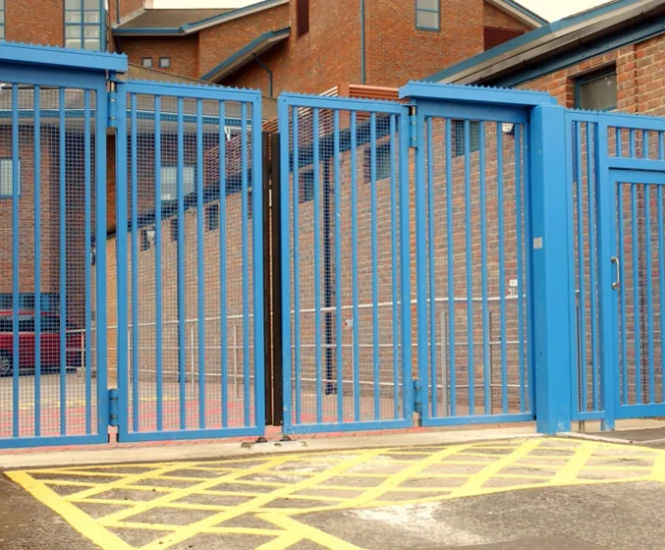

CSG 10604 trackless bi-folding speed gate
CSG 10604 bi-folding speed gate has an open/close cycle time of 6 seconds. 10604 does not require a track, using a folding system housed inside a casing on top of the post-hung leaf. It is driven by a crank arm with an electromagnetic brake that locks the gate in both open and closed positions. Bi-folding method of gate operation requires
CSG 10604 bi-folding speed gate has an open/close cycle time of 6 seconds.
10604 does not require a track, using a folding system housed inside a casing on top of the post-hung leaf.
It is driven by a crank arm with an electromagnetic brake that locks the gate in both open and closed positions.
Bi-folding method of gate operation requires significantly less power than conventional swing gates, and is also less affected by the wind.
Gate leaf sections are fully welded, infilled with closely spaced vertical bars with a maximum gap of 100mm. To reduce climb-over possibilities, there are no cross bars below 3m high.
Single units are typically 3.5m wide and biparting gates are 7.0m wide. Gates usually measure 2.4m high, but can be higher with reductions to the maximum width.
Controls are PLC-based and can be easily configured to suit customer requirements.
Features:
Ideal for schools, airports, dockyards, data security centres, etc..
Manufactured to any entrance size
Mechanical locking with manual or automatic controls
