MultiFence is a mobile, durable, high-security perimeter fencing system for situations that require temporary or long-term protection.

MultiFence uses anti-climb mesh fencing, and is available up to 5m in height. The fence panels are supported every 1.5m to provide a rigid structure.

Fence posts are mounted in 3m-long concrete blocks that weigh 3 tons each. The blocks can follow a curve or go from a flat surface to an incline with ease.

Two different fencing types and two different types of concrete block can be combined depending on site requirements.

By mounting the fencing onto concrete blocks, the MultiFence system saves a considerable amount of space compared to other temporary fencing systems.

Accreditation

The fencing has been tested to PAS68 standards and has achieved Secured by Design approval.

Key Features

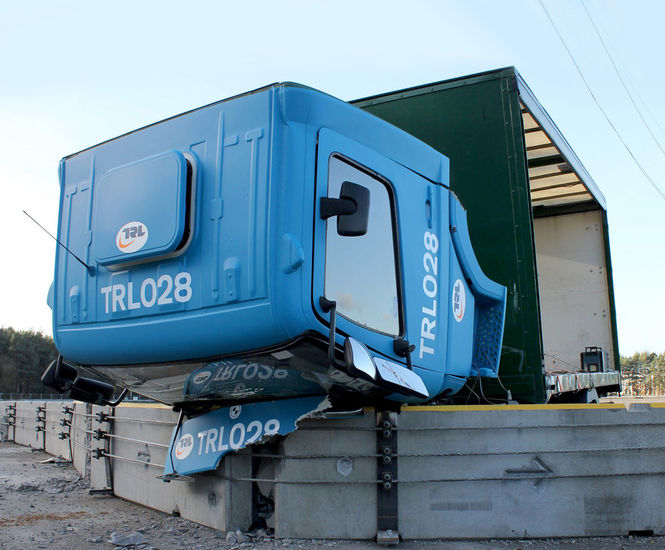

  • HVM crash test rated to PAS 68 specifications (PAS 68 2010: V/7500[N2]/64/90:5.0/0.0 & PAS 68 2010: V/7500[N2]/48/90:3.0/0.0)
  • Can be fully integrated with PIDs, CCTV and topping enhancements
  • No in-ground pinning or foundations required
  • Suitable for permanent or temporary installations
  • A security barrier for protection against vehicle-borne attacks, ram-raiders etc
  • Patent No: 001807926-0001

Specification

  • Height Range: 2000mm – 2700mm
  • Panel Width: 1600mm
  • Mesh Size: 12.7mm x 76.2mm (358 style mesh) as standard. Other mesh options such as ArmaWeave are also available upon request.
  • Wire Diameter: 4mm Verticals & 4mm Horizontals as standard
  • Top Edge Projection: 100mm minimal spikes
  • Post Sizes: 60 x 60mm
  • Clamp Bar Size: 40mm x 5mm
  • Post Centres: 1500mm
  • Fixing Centres: 400mm
  • Fixings: Anti Tamper Security Fixings
  • VCB Size: 800 x 450 x 3000mm
  • VCB Type: TVCB with HVM Cable System
  • VCB Weight: 2.5tn
