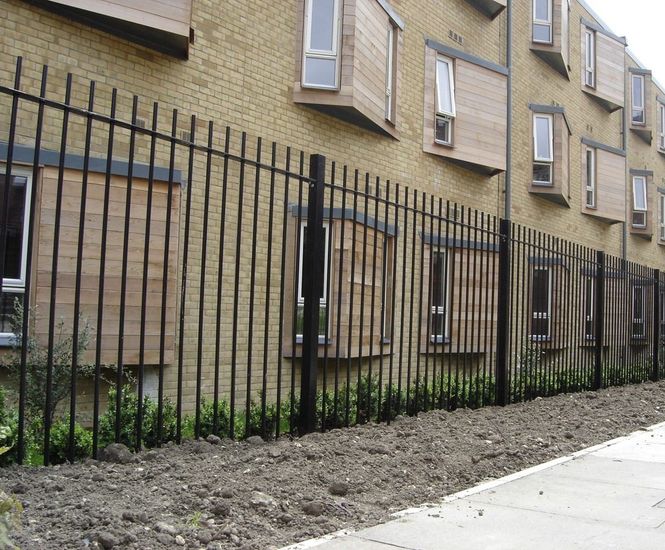

Zaun Vertical Bar Railings are metal boundary fencing systems made from solid vertical bars, designed for perimeter demarcation in settings where appearance and durability are important. Systems are available with round or square bars, a range of heights up to 2.0m, and a choice of finials and toppings.

  • Metal railing system with solid vertical bars for boundary fencing

  • Choice of round or square bars and multiple finial styles

  • Hot-dip galvanised to ISO1461 with optional polyester powder coating

  • Bar size increases with fence height to meet BS 1722 Part 9

  • Panels can be stepped or sloped for installation on gradients

  • Matching pedestrian and vehicle gates available

Applications

  • Housing estates

  • Parks and playgrounds

  • Schools and education sites

  • Transport hubs

  • Zoos and wildlife parks

Dimensions

Fence height 1000mm / 1200mm / 1500mm / 1800mm / 2000mm

Panel width 2700mm

Bar diameter 12mm / 16mm / 20mm

Bar centres 101mm / 110mm / 120mm

Post size 50mm x 50mm / 60mm x 60mm

Performance

Life expectancy 15–20 years in UK C1 environment (ISO 12944 p2)

Materials

Made from solid metal bars

Finish

Hot-dip galvanised to ISO1461

Optional polyester powder coating to BS1722 p16

Options and variations

Wall fixing, cranked posts, base plated posts, raked and radiused panels, wide range of finials

Installation

Post and stepping cleat system with Cup Square Bolts and Shear Nuts

Panels can be stepped or sloped to suit ground gradients

Accreditations

Complies with BS 1722 Part 9

Polyester powder coating to BS1722 p16
