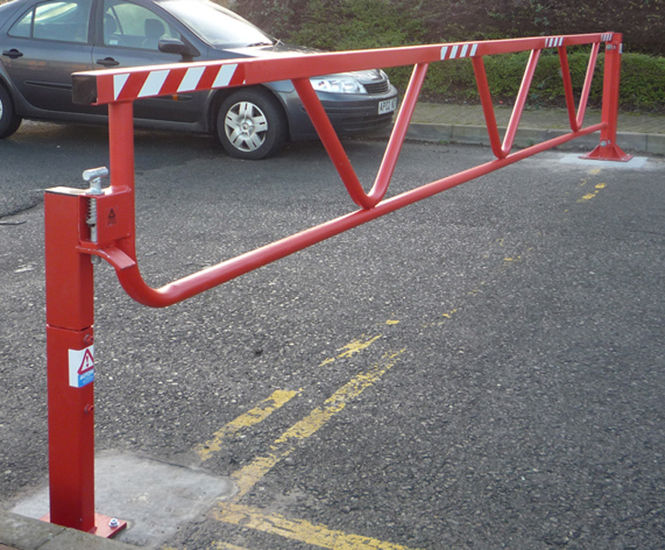

AUTOPA's made-to-order swing gates are extremely robust and reliable and are designed for securing commercial and industrial site entrances where only occasional access control is required.

The gates incorporate several safety features, including it self-latches onto catchposts to ensure it cannot swing freely. The leading edge beam is very short and the lower edge is low to ensure, should the gate swing open, that it contacts only with a vehicle’s bumper. Combined, these features reduce the chances of the gate swinging open unexpectedly while also decreasing the risk of injury should it do so. Adjustable hinges ensure correct level.

The gate can be locked in both open and closed positions (with an optional second catchpost) by padlock and is constructed in heavy-duty galvanised mild steel.

A range of options is available, including ragged for casting in to new concrete, flanged for bolting to existing concrete, and double gates which meet in the middle with removable catchposts.

Features

  • Galvanised mild steel, painted red as standard
  • Lockable in open and closed positions (two catchposts required)
  • Single gate up to 7m
  • Adjustable hinges and catchpost
  • Locked in place with user's own padlock
  • Available ragged for casting in or flanged for bolting down

Specifications

  • Main body: 120 x 120mm square tube
  • Main gate arm: 60 x 60mm square tube
  • Catch post body: 90 x 50mm tube
  • Boom lengths: 3000-7000mm
  • Ragged gate: 600mm below ground
  • Ragged catchpost: 400mm below ground

Options

  • Other colours are available upon request; state BS/RAL numbers at time of order
  • Full site survey and installation service available.
