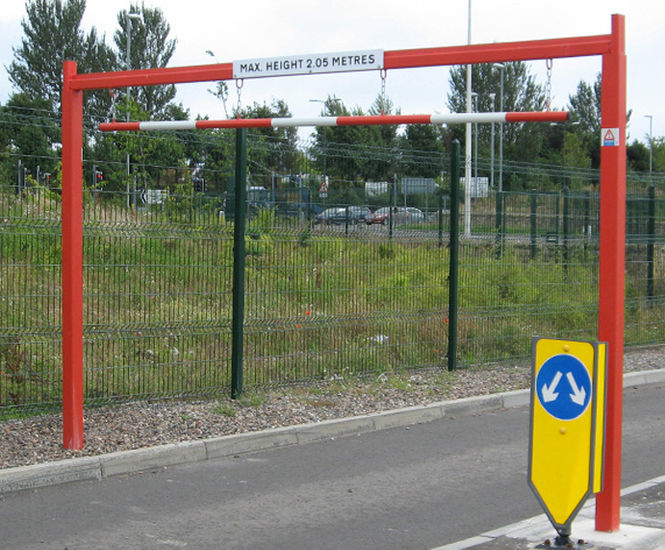

AUTOPA's fixed height restrictor is designed to restrict access to high-sided vehicles such as HGVs and caravans. They are particularly useful where further height restrictions within the site may cause problems.

The knocking bar (where fitted) is 48mm diameter tube, painted white with red reflective bands.

Available in both ragged (for casting into new concrete) and with flanged feet (for bolting to existing concrete).

Features

  • All fabrication of galvanised steel construction.

  • Finish coated red (with white class 2 reflective tape on the optional knock bar).

  • Single height restrictor up to 7m width.

Specifications

  • Galvanised steel main post construction 90 x 90 x 3mm.

  • Base 400 x 400 x 10mm thick

  • 600mm below ground (ragged version)

  • Four 16mm bolts required for each leg (flanged version)

  • Single height restrictor up to 7m wide

  • Knocking Bar: 48mm diameter tube

Options

  • Galvanised and galvanised and coated finishes without the knocking bar

  • Alternative colours; specify when ordering

  • Knocking bars

  • Road warning signs

  • Swing gates (cannot be retrofitted to an existing height restrictor)
