Characteristics Coloured
High visibility
Material Aluminium

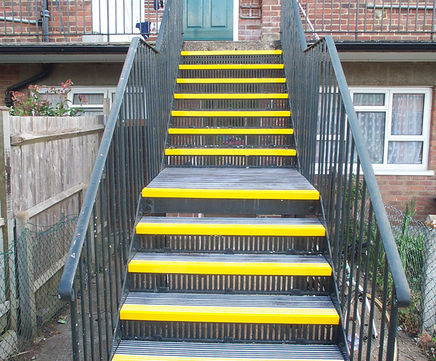

Alispar™ aluminium stair treads and nosings are designed for use in areas with heavy foot traffic. They are suitable for use on external stairs where a high degree of slip resistance is required, even in wet conditions.

  • Manufactured to order from a range of nine standard profiles
  • Can be used on any size or width of tread
  • Can be fitted onto concrete, steel or wooden surfaces

Typical applications

  • Railway station footbridges and subways
  • Hospitals
  • Schools
  • High rise housing blocks

Technical specification

  • High tensile extruded aluminium in 6063 alloy T6 tempered to T6 hardness
  • Conforms to BS 1474
  • Front rows of abrasive available in yellow to highlight step edge
  • 6mm radius to front edge complies with section 2.2.7 of the Code of Practice for Disabled Passengers issued by the Office of the Rail Regulator

Options

  • Carborundum inserts are available in a range of colours
  • Colours: black, red, blue, green, yellow, brown
  • Aluminium riser of the nosings sections (MOD 1 and MOD 2) can be powder coated yellow as an optional extra

Variants

MOD1
90° nosing available in mill finish or yellow powder coated aluminium. Interlocks with MOD 4 and MOD 5 sections.

MOD2
81° nosing available in mill finish or yellow powder coated aluminium. Interlocks with MOD 4 and MOD 5 sections.

MOD3
90° nosing with extended riser incorporating 55mm yellow or white tonal variation strips. Interlocks with MOD 4 and MOD 5 sections.

MOD3R
81° rakeback version of MOD3.

MOD4
90mm-wide body section can be used in multiples to cover full tread and landing depth. Interlocks with MOD 1/2/3/55 and MOD 5 sections.

MOD5
Chamfer section for use on top and landing treads. Interlocks with MOD 1/2/3/4/55 sections.

MOD55
Stair tile replacement nosing, with 55mm tonal variation infill. Interlocks with MOD 4 and MOD 5 sections.

MOD6
75° nosing with riser incorporating 55mm yellow or white tonal variation strips. Interlocks with MOD 4 and MOD 5 sections.

MOD7
90° nosing with riser incorporating 55mm yellow or white tonal variation strips. Interlocks with MOD 4 and MOD 5 sections.


Alispar™ aluminium stair treads and nosings are designed for use in areas with heavy foot traffic. They are suitable for use on external stairs where a high degree of slip resistance is required, even in wet conditions.

  • Manufactured to order from a range of nine standard profiles
  • Can be used on any size or width of tread
  • Can be fitted onto concrete, steel or wooden surfaces

Typical applications

  • Railway station footbridges and subways
  • Hospitals
  • Schools
  • High rise housing blocks

Technical specification

  • High tensile extruded aluminium in 6063 alloy T6 tempered to T6 hardness
  • Conforms to BS 1474
  • Front rows of abrasive available in yellow to highlight step edge
  • 6mm radius to front edge complies with section 2.2.7 of the Code of Practice for Disabled Passengers issued by the Office of the Rail Regulator

Options

  • Carborundum inserts are available in a range of colours
  • Colours: black, red, blue, green, yellow, brown
  • Aluminium riser of the nosings sections (MOD 1 and MOD 2) can be powder coated yellow as an optional extra

Variants

MOD1
90° nosing available in mill finish or yellow powder coated aluminium. Interlocks with MOD 4 and MOD 5 sections.

MOD2
81° nosing available in mill finish or yellow powder coated aluminium. Interlocks with MOD 4 and MOD 5 sections.

MOD3
90° nosing with extended riser incorporating 55mm yellow or white tonal variation strips. Interlocks with MOD 4 and MOD 5 sections.

MOD3R
81° rakeback version of MOD3.

MOD4
90mm-wide body section can be used in multiples to cover full tread and landing depth. Interlocks with MOD 1/2/3/55 and MOD 5 sections.

MOD5
Chamfer section for use on top and landing treads. Interlocks with MOD 1/2/3/4/55 sections.

MOD55
Stair tile replacement nosing, with 55mm tonal variation infill. Interlocks with MOD 4 and MOD 5 sections.

MOD6
75° nosing with riser incorporating 55mm yellow or white tonal variation strips. Interlocks with MOD 4 and MOD 5 sections.

MOD7
90° nosing with riser incorporating 55mm yellow or white tonal variation strips. Interlocks with MOD 4 and MOD 5 sections.
