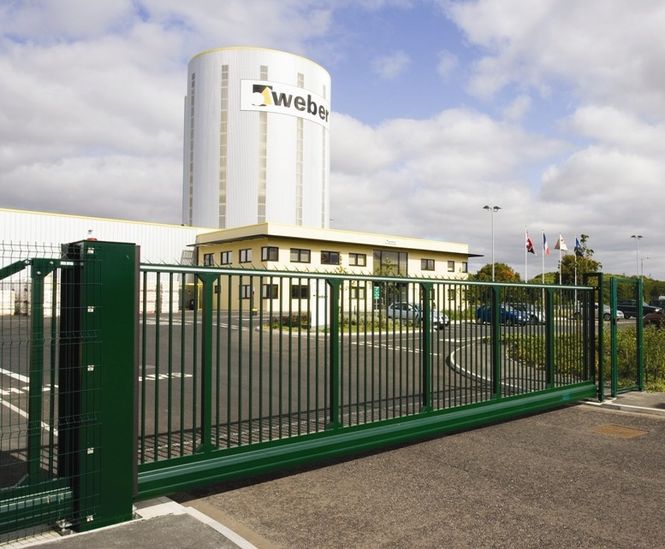

SlideMaster™ cantilever sliding gate provide secure access and site protection for retail parks, industrial sites and other relatively low-level security locations.

With a heavy-duty aluminium frame and a choice of infill – from standard vertical bar panels to any of CLD's mesh panel products – SlideMaster™ not only offers high security, but also presents a modern and professional entry and exit control.

Available with manual or automatic operation, and with double gate drive through widths of up to 20000mm, they allow access room for even the largest of vehicles. The track of the sliding gate is totally enclosed to prevent damage from vandals.

SlideMaster™ gates conform to the British Safety Standards (BS EN 12453) for power-operated industrial or commercial gates, giving the added assurance of being built with quality in mind.

Features

  • Can be supplied up to 3m high

  • Clear drive through widths up to 20m

  • Heavy-duty aluminium frame

  • Totally enclosed track

  • Sliding gate design

  • Cantilever for no tracks

  • Fully compliant with the EU standard BS EN 12453

Finish

Aluminium or galvanised and polyester powder-coated. Available in the RAL range of colours.

Dimensions

Gate width (single)
1200-10,000mm

Gate width (double)
2400-20,000mm

Operating speed
4 seconds per metre

Gate infill panel
CLD mesh options or vertical bar

Applications

  • Industrial and retail parks

  • Data centres

  • Airports and seaports

  • MOD

Options

  • Manual or automatic operation

  • Double- or single-leaf

  • Range of mesh panel infills, or standard 30mm round bar infill at 125mm centres

  • Full range of RAL colours

Locks

  • Conventional slide latches

  • Self-closing devices

  • Fire exit panic latches

  • Digital codelocks for high-security applications

Applications

  • Industrial parks

  • Retail parks

  • Data centres

  • Airports and seaports

  • MOD
