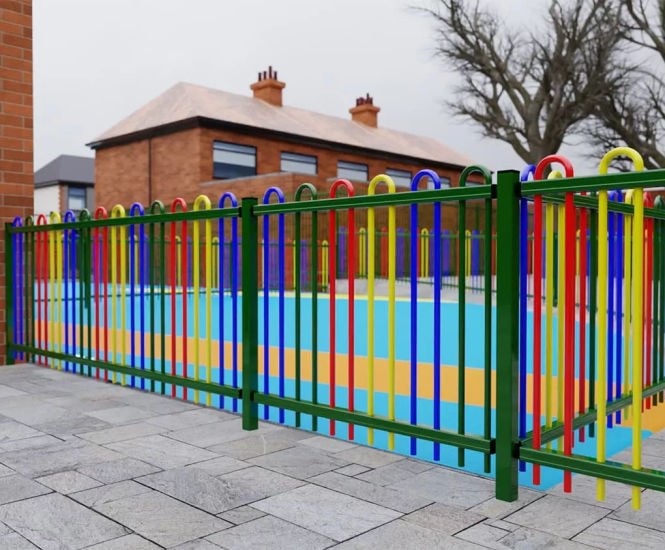

FlexaRail is a patented contour railing system with vertical tubular bars. It is fully adaptable, meaning that no stepping is required as the panels self-rake to follow ground contours.

FlexaRail provides a safe perimeter for schools, children's playgrounds, parks and residential estates. The standard bow top is approved by the Royal Society for the Prevention of Accidents (RoSPA) for use around play areas.

The vertical tubular bar metal railings are available in a variety of heights ranging from 900 to 2400mm. When physical security needs to be ramped up, FlexaRail offers taller panels that create a formidable barrier around perimeters, with varying options for the top.

Features

  • Metal railings with bow top, vertical bar, finial and RoSPA options

  • Self-raking railing system 9.75° for raking angle for PlaySafe; 12.75° for vertical bar

  • Heights from 0.9 to 2.4m

  • Follows ground contours, so no stepping is required

  • Option to add vertical bar tops with spearhead finials

  • RAL colours available

  • Large range of styles

Dimensions

Heights
900, 1000, 1200, 1500, 1800, 2000, 2100, 2400mm

Tubular bars
25.4mm dia

Horizontal rail
50 x 56mm

Panel width
2880mm

Posts
60 x 60mm or 2.5mm SHS

Post centres
2995mm

Finish

Hot dipped galvanised and polyester-powder coated after stringent cleaning and treatment to give a well-adhered coating of a minimum of 60 microns.

Applications

  • School security

  • Playgrounds

  • Recreation grounds

  • New-build housing

Gates

Standard gate sizes to match any of the railing types.

Locking systems and self-closers if required.

Can be powder-coated in a contrasting colour to meet DDA and access regulations.
