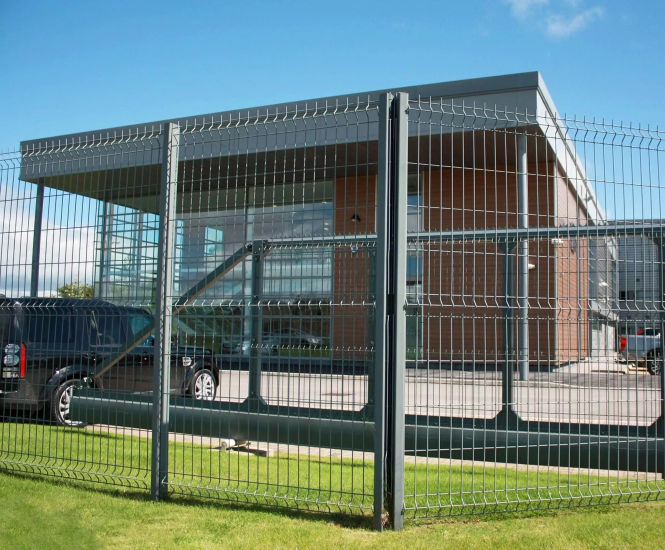

Exempla™ profiled rigid welded mesh fencing is an attractive system that provides a robust first line of defence for public buildings, schools, car parks and commercial fencing projects.

Exempla™ is designed for quick and simple installation. The profiled rigid welded mesh fencing panels are securely fastened to 60x40mm RHS steel posts and held in place the unique hidden fixing system, SafeTfix™; making it easy to step panels up or down a slope.

Panels are manufactured from 5mm galvanised steel wires which are welded at each intersection with a standard or marine grade polyester powder coating.

Installation

Exempla™ uses a welded mesh panel with longitudinal profiles that forms a rigid fence and a standard post and clamp system, which allows infinitely variable stepping of panels.

Features

  • Profiled rigid welded mesh fencing

  • 200x55mm welded mesh apertures

  • Attractive appearance

  • Blends in with surroundings

  • No external fixings

  • Heights up to 3m

  • Full range of RAL colours available

Specifications

Heights
630, 830, 1030, 1230, 1530, 1730, 1930, 2330, 2530, 2730, 3030mm

Panel widths
2485mm

Mesh size
200x55mm

Wire diameter
5mm

Profiles
2, 3, 4 or 5

Top edge projection
30mm (can be inverted for flush edges)

Posts
60x40mm RHS (up to 2730mm)
80x40mm RHS (3030mm)

Clamping channels
41 x 21mm

Post centres
2495mm

Finishes

Panels are made from 5mm galvanised steel wires with polyester powder-coated welds at each cross over point.

Sloping ground

Panels can be stepped as required. Where gradients exceed 1:16, it is recommended that taller panels are either part-buried or additional posts are used.

Variations

In addition to the standard posts many variations are available to accommodate site requirements:

  • Alternative sections

  • Wall fixing plates, cranked posts or base plated

  • Cranked or straight extensions for barbed or razor wire

  • Cranked panels

Applications

  • Public buildings

  • Schools

  • Car parks

  • Business parks

  • Retail premises
