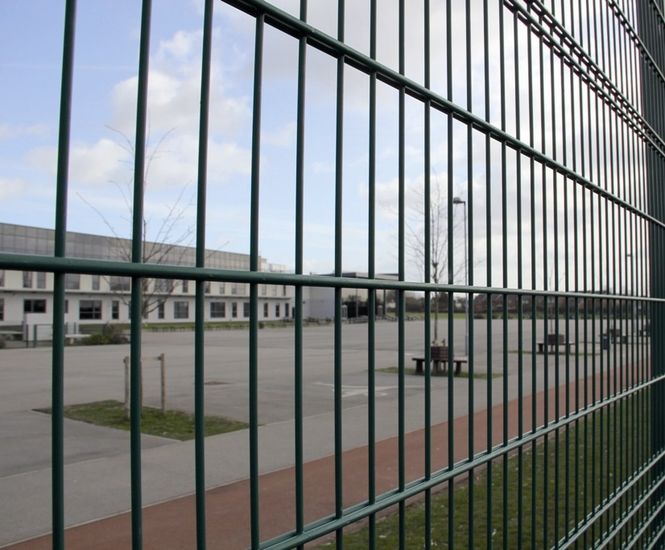

The Dulok™ double-wire mesh fencing system is used to protect schools, sport grounds, wildlife enclosures, and many other public places. Produced in over 20 heights, it can be specified in a wide selection of RAL colours.

Panels are made using twin 8mm wires welded either side of 6mm vertical wires (868 double-wire mesh). These are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.

Features

  • Anti-cut-through, double wire panels

  • Conforms to BS 1722: Part 14

  • 868 double-wire as standard

  • 656 double-wire mesh option

  • Anti-cut-through panels

  • Full-length clamp bar

  • Sheardrive fixings

  • Wide range of heights up to 6030mm

  • Wide range of RAL colours

Applications

  • Schools

  • Multi-use games areas

  • Zoos and wildlife parks

  • Public buildings

  • Industrial buildings

Dimensions

Heights
630-6060mm
Fence heights above 3030mm are made up of 2 or more panels

Panel width
2506mm

Mesh size
200 x 50mm

Wire diameter
6mm (verticals) and 2 x 8mm (horizontals)
Also available in 6/5/6mm

Top edge projection
30mm (can be inverted for flush edges)

Posts
60 x 40 to 120 x 60mm RHS dependent on height

Flat clamp bars
40 x 5mm

Post centres
2520mm

Finish

Polyester powder-coated to minimum 60 microns

Any RAL colour including marine grade and metallics

Sloping ground

Panels can be stepped as required within the clamp bar system

Where gradients exceed 1:16, it is recommended that taller panels are either part-buried or additional posts are used

Variations

The posts are available in a range of lengths to accommodate panel heights and ground conditions. In addition, many variations are available:

  • Wall fixing plates, cranked posts or base-plated

  • Cranked or straight extensions for barbed or razor wire

  • Cranked panels
