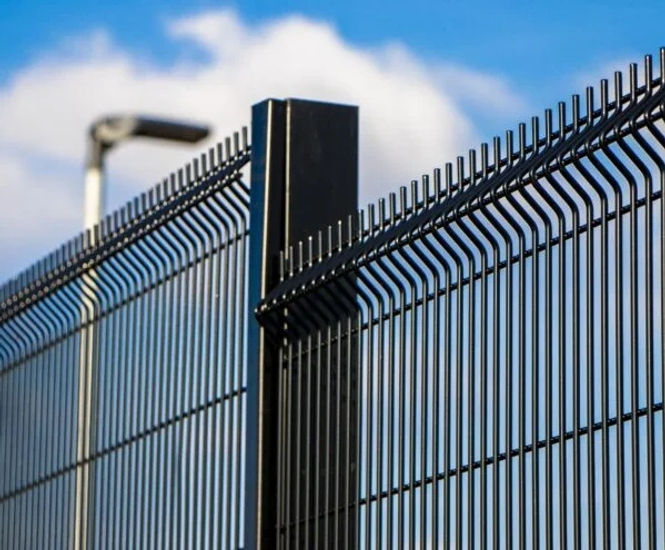

The Ultimate Extra™ profiled panel fence has been developed to meet the enhanced perimeter security requirements of industrial and public buildings, as well as schools.

Panels have close wire centres which, combined with increased wire diameter and the RHS post and channel clamp strip, give them great strength and make them difficult to climb. This makes for an exceptionally secure fencing system.

Offering all the security features of the standard Ultimate™ profiled panel system – but with thicker and denser wire panels – Ultimate Extra™ is the wire mesh fence that provides even more protection as perimeter fencing for high-status premises including schools, seaports and airports.

The vertical 6mm heavy duty wire are just 25mm apart on each panel, providing great strength and proving extremely difficult to climb. Upper profiles enhance the strength of the wire mesh fences, along with a galvanised and polyester powder coated security post and clamp bar.

Specified across the United Kingdom by Councils and Security Consulatants, the Ultimate Extra™ conforms to BS 1722-14 for open mesh steel panel fences. This popular choice also offers excellent visibility despite the close wire centres and regardless of the wide range of RAL colour you decide upon.

Installation

Ultimate Extra™ uses a standard post and clamp system, which allows infinitely variable stepping of panels.

It is versatile, strong, simple to fix and vandal-resistant, yet allows panels to be removed without damage to either post or clamp. Accidentally damaged panels are therefore easily replaced without removing the post.

Dimensions

Heights
1800, 2030, 2430, 3030mm

Panel Width
2475mm (up to 2430mm) 2050mm (3030mm)

Mesh Size
165 x 25mm

Wire Diameter
6mm

Profiles
3 or 4

Top Edge Projection
25mm (Can be inverted for flush edges)

Posts
80 x 40mm RHS

Clamping Channels
41 x 21mm

Post Centres
2485mm (up to 2430mm) 2060mm (3030mm)

Finishes

Galvanised and polyester powder-coated, after stringent cleaning and treatment, to give a well adhered coating of 60 microns. RAL range of colours available.

Full range of RAL colours

Features

  • Aesthetic solution
  • 165mm x 25mm Mesh Apertures
  • Wire Mesh Fence Panels
  • Difficult to climb
  • Tight mesh aperture
  • No external fixings
  • Conforms to BS 1722-14 for open mesh steel panel fences
  • Approved by planning authorities
  • 6mm Nominal Profiled V Mesh

Applications

  • Industrial buildings
  • Public buildings
  • Schools
  • Airports and seaports

Sloping ground

Panels can be stepped as required. Where gradients exceed 1:16, it is recommended that taller panels are either part-buried or additional posts are used.

Variations

In addition to the standard posts many variations are available to accommodate site requirements:

Alternative sections

  • Wall fixing plates, cranked posts or base plated
  • Cranked or straight extensions for barbed or razor wire
  • Cranked panels
