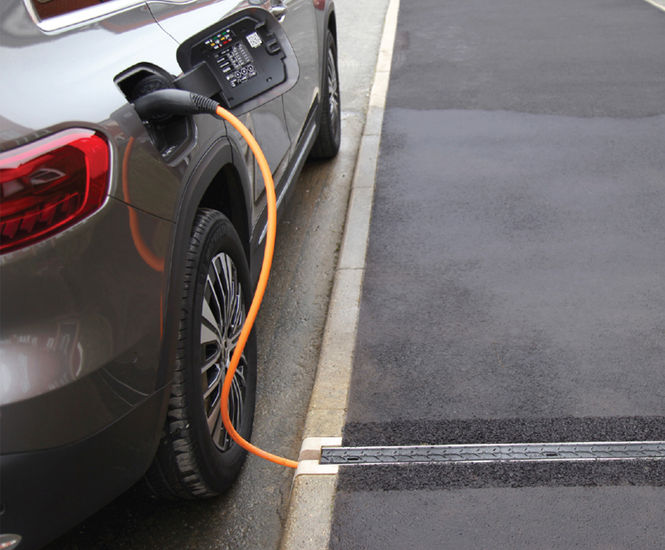

ACO EV Power Channel is a cable management system for electric vehicle charging across public pavements. Designed for on-street residential charging, it uses a polymer concrete channel with recycled rubber covers and kerb units to match UK profiles.

Engineered for long-term performance in pedestrian environments, the system is tested to a equivalent load class of B 125. The EV Power Channel supports local authority cross-pavement charging initiatives by helping reduce trip risk while maintaining a flush, accessible surface finish. Two kerb profiles are available: half battered and bull nose.

The ACO EV Power channel is manufactured from ACO’s high strength polymer concrete which offers greater durability when compared to traditional plastic. The properties of the material allow virtually no water absorption giving protection against frost and freeze-thaw cycles, thus maintaining the long term performance of the unit.

The recycled rubber cover can be lifted as one piece, using a dedicated lifting tool, allowing safe removal from a standing position. Lightweight for ease of handling, the cover features side tabs to ensure a secure and precise fit within the channel.

  • Cable management system for EV charging across pavements

  • Recycled rubber cover made from end-of-life vehicle tyres

  • Slip-resistant tread pattern tested to BS EN 16165:2021

  • Flush, accessible surface finish for pedestrian safety

  • Lightweight, flexible cover with push-lock fit for easy use

  • Quick installation with standard mortar and cold-lay asphalt

  • Kerb units reinforce channel ends and match common UK kerb profiles

Applications

  • Residential on-street EV charging across public footways

Dimensions

  • Equivalent to C 250 kerb end and B 125 channel load class

Materials

  • Polymer concrete channel

  • Recycled rubber cover

Options and variations

  • Half battered kerb unit

  • Bull nose kerb unit

Performance

  • Tested to B 125 load class

  • Slip resistance tested in three directions to BS EN 16165:2021

Installation

  • Quick set mortar and cold-lay asphalt

  • No specialist materials or complex requirements

Sustainability

  • Cover made from recycled vehicle tyres
