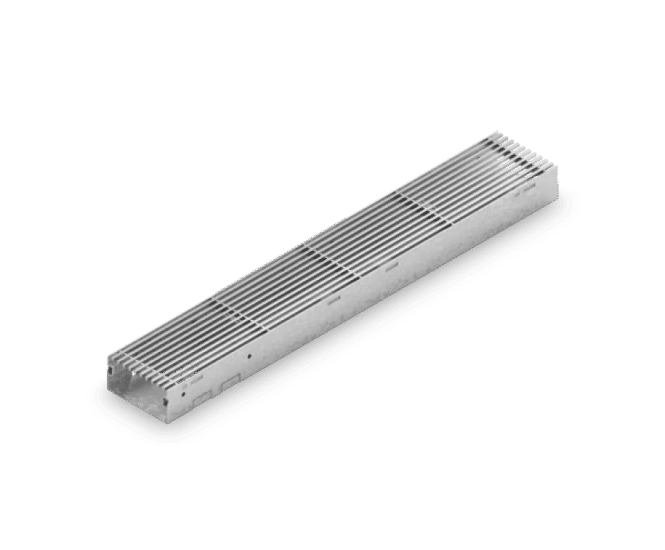

STEELFIX REGULAR is a closed square drainage channel made from galvanised or stainless steel for standardised and compliant facade drainage. Channel widths range from 115mm to 255mm and heights from 45mm to 150mm. Locking handles allow easy connection of channel elements, with an optional anti-floating device for secure positioning. Drain boxes and cross-intersection channels enable barrier-free drainage.

  • Closed square drainage channel system for facade drainage

  • Made from galvanised or stainless steel

  • Widths: 115mm, 135mm, 150mm, 200mm, 205mm, 255mm

  • Heights: 45mm to 150mm

  • Locking handle for tool-free connection of channel elements

  • Clip-on end cap for quick installation

  • Optional anti-floating device for permanent positioning

  • Pre-perforated cut-outs for DN/OD 75 and DN/OD 110 connections

Applications

  • Facade drainage in commercial, public, and private buildings

  • Barrier-free drainage for entrances and walkways

  • Areas requiring standardised drainage solutions

Dimensions

Length: 1000mm

Width: 115mm, 135mm, 150mm, 200mm, 205mm, 255mm

Height: 45mm, 75mm, 100mm, 150mm

Materials

Galvanised steel

Stainless steel

Grating options

  • Slotted grating, SW 80/9–80/10 mm (galvanised or stainless steel)

  • Mesh grating, MS 30/10 mm (galvanised or stainless steel)

  • Mesh grating, MS 8/21 mm (recycled polypropylene, black or silver)

  • Longitudinal grating, bar distance 10–12 mm (galvanised or stainless steel)

  • Longitudinal grating Filigree, bar distance 8 mm (stainless steel)

  • FIBRETEC design slotted grating (reinforced polyamide, black)

  • Perforated grating, Ø 6 mm (galvanised or stainless steel)

Accessories

Drain box

Closed cross-intersection channel

Anti-floating device

End cap with clip function

Pre-perforated cut-outs for DN/OD 75 and DN/OD 110

Side window openings
