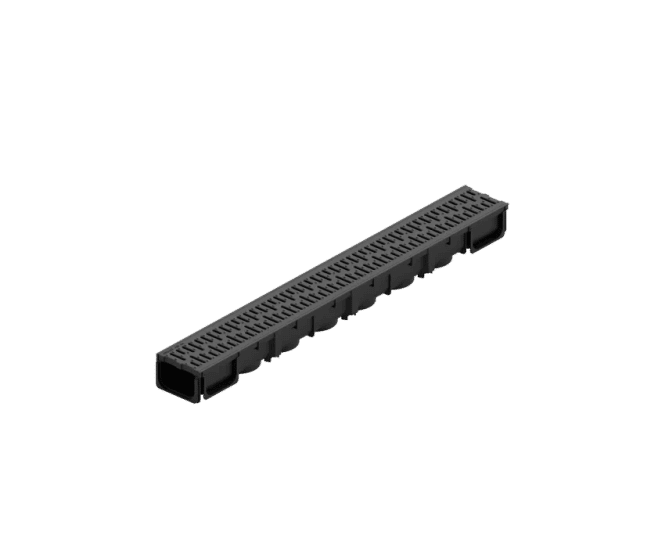

URBANTEC domestic channel drainage system with Heelsafe grating or slotted cover, made from composite or galvanised steel. Grating clips into an angle housing for a secure finish. Eight vertical outlets along the channel allow flexible connection. In-built connections enable corners and t-junctions. Slotted composite cover has an asymmetrical slot for varied landscaping. Low weight aids installation and transport.

  • Pedestrian drainage channel with Heelsafe grating for domestic use

  • A15 load class for light traffic

  • Grating clips securely into angle housing

  • Eight vertical outlets for flexible pipe connection

  • In-built connections for corners and t-junctions

  • Slotted composite cover allows different materials on each side

  • Lightweight for easy handling and installation

Applications

  • Footpaths

  • Cycle paths

  • Pedestrian areas

  • Driveways

  • Gardens

  • Patios

Dimensions

Length 1000mm

Width 126mm

Heights 78mm (Heelsafe) 137mm (Slotted cover)

Nominal size 100mm

Materials

Composite

Galvanised steel

Options and variations

  • Heelsafe grating, SW 6 mm, composite (black) or galvanised steel

  • Slotted cover, SW 9 mm, neck height 59 mm, asymmetric design, composite (black)

Performance

Load classes A15

Installation

Grating clips into angle housing

Low weight for easy installation and transport

Technical support

Product finder with planning information, technical drawings, and CAD data
