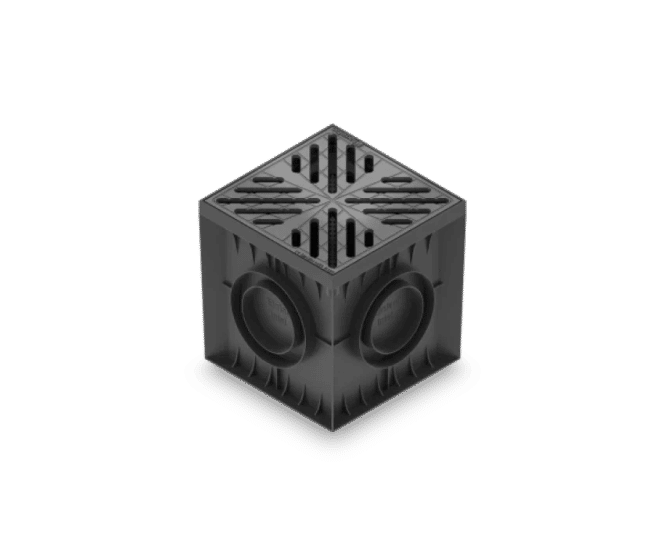

RECYFIX POINT is a point drainage system for paved areas including courtyards, walkways, and public squares. Made from modified polypropylene, it is lightweight for easy handling and installation. Gratings are available in ductile iron or galvanised steel. Units are easy to clean with removable mud buckets and connect to various pipework types. Fully recyclable and PVC-free.

  • Point drainage system for paved outdoor surfaces

  • Made from durable modified polypropylene

  • Lightweight for transport and installation

  • Gratings in ductile iron (star or longitudinal) or galvanised steel mesh

  • Removable mud buckets for straightforward cleaning

  • Withstands temperature changes and UV exposure

  • Multiple connection options to suit different pipework

  • Suitable for loading up to C 250

  • Fully recyclable and PVC-free with Blue Angel environmental label

Applications

  • Courtyards

  • Walkways

  • Public squares

Dimensions

Length 291mm

Width 291mm

Height 300mm or 450mm

Materials

Modified polypropylene

Ductile iron

Galvanised steel

Options and variations

  • Load class: A 15, B 125, or C 250

  • Installation height: 300 mm or 450 mm

  • Grating type: mesh grating (A 15/B 125), ductile iron star design (B 125), longitudinal ductile iron (C 250), or FIBRETEC slotted polyamide (B 125)

  • Grating finish: galvanised, stainless steel, or KTL-coated (varies by load class)

  • Silt bucket and foul air trap: available on selected B 125 variants with lateral pipe connection DN/OD 110/160

  • Extension frame accessory: 148 mm height extension for additional depth

Performance

Withstands temperature differences and UV radiation

Product accreditations

Conforms to EN 1433 load classes A15 to C250

Blue Angel environmental label

Maintenance

Removable mud buckets for easy cleaning and blockage prevention

Sustainability

Made with recycled material

PVC-free

Fully recyclable after use
