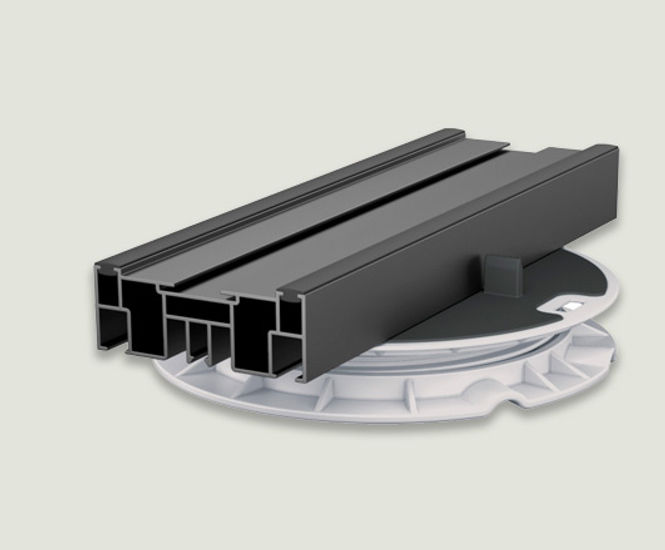

Easi-Ped Tekno Rail Aluminium Joists are made from black anodised aluminium for creating stable sub-frames in decking and paving installations. Designed for use with Easi-Ped pedestals, this system includes integrated rubber shims to reduce movement and noise. Supplied as a single unit measuring 25mm high, 69mm wide, and 2000mm long.

  • Aluminium joist system for decking and paving support

  • Compatible with King, Queen, Queen Tower, and Junior Easi-Ped pedestal ranges

  • Integrated rubber shims help reduce noise and movement

  • High load capacity for structural support

  • 25-year warranty and 50-year service life

  • Black finish as standard

  • Quick installation with no additional fixings required for most pedestal heads

Applications

  • Sub-frame support for decking boards and paving installations needing extra stability

Dimensions

Height 25mm

Width 69mm

Length 2000mm

Materials

Black anodised aluminium

Performance

Service life 50 years

Compression test at 500mm pedestal centres 3,583N

Compression test at 600mm pedestal centres 2,971N

Installation

Fits directly onto Queen Spacer Tab heads

King and Junior heads require removal of two tabs for fitting

Rubber shims included

Manufacture

Designed and manufactured in Italy

Warranty

25 years
