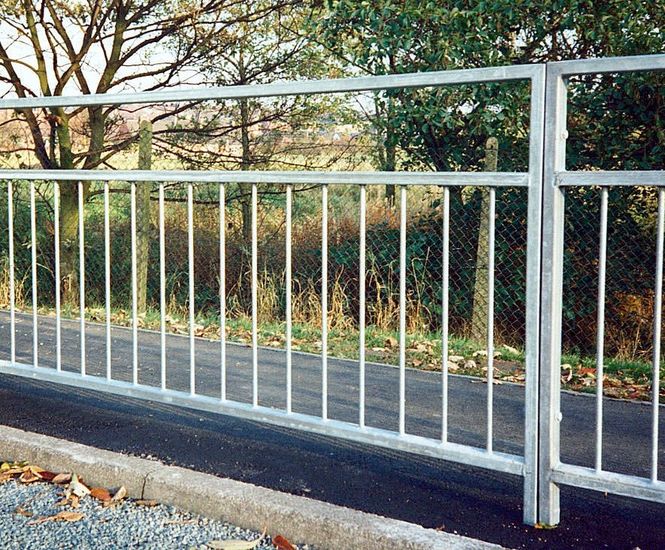

Type 285 galvanised steel pedestrian guard rail with offset vertical infill rails. Conforms to BS 7818. Barrier system suited to pedestrian areas, road margins and public realm schemes across the UK.

  • Galvanised steel construction to BS 7818

  • Offset vertical infill rails - 2m standard panel width

  • 1050mm above-ground height with 300mm root depth

  • Stock item - available for immediate supply

Applications

  • Pedestrian zones and footpaths

  • Road and carriageway margins

  • Bridges, waterside and esplanade settings

  • Retail parks and public realm schemes

Materials

Galvanised steel construction

Options & Variations

  • Full height or with view rail

  • Non-standard panel lengths available to order

  • Posts set at 300mm root depth

Dimensions

Panel width

2000mm (standard)

Height above ground

1050mm

Panel height

900mm

Root depth

300mm

Infill spacing

110mm
