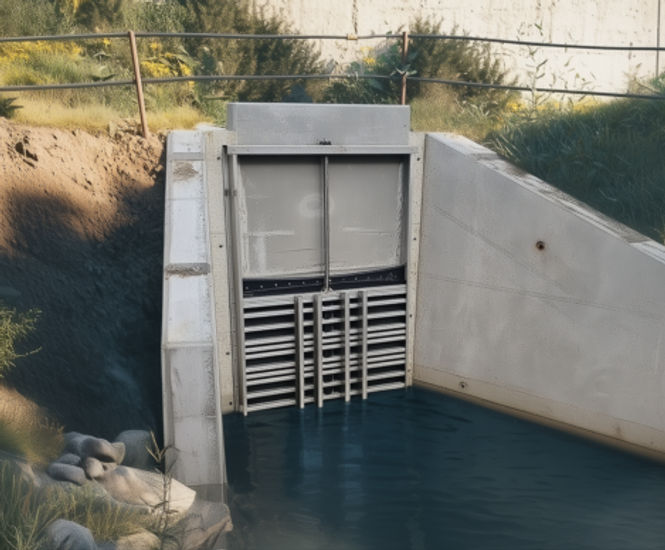

ACO Q-Penstock is a flow control unit for surface water and wastewater networks, made from lightweight HDPE with stainless steel 316L reinforcement. Designed for wall mounting. DN100–1500mm for HD and DN100–600mm for SD.

  • Flow control unit for managing surface water, flood, and sewage systems

  • Made from HDPE with stainless steel 316L reinforcement

  • Curved, vertically moving door with EPDM seal

  • Wall mounted design with maximum water column of 5Mwc (HD) or 3Mwc (SD)

  • Standard sizes: DN100–1500mm (HD), DN100–600mm (SD)

  • Complies with BS7775 and DIN-19569-4 class 4 (HD)

  • 50 year design life

Applications

  • Surface water and flood management systems

  • Foul and combined sewage systems

  • Offline storage creation

  • Discharge control to watercourses

  • Section isolation for maintenance

Specification

Q-Penstock HD

  • DN100–1500mm

  • Maximum meter water column: 5Mwc (both sides)

  • Comply's with BS7775 & DIN-19569-4 class 4

  • Wall mounted - other options available (spigot or flange mounting)

Q-Penstock HD

  • DN100–600mm

  • Maximum meter water column: 3Mwc (both sides)

  • Comply's with BS7775

  • Wall mounted

Materials

HDPE

Stainless steel 316L reinforcement

EPDM seal

Performance

50 year design life

Product accreditations

Complies with BS7775

Complies with DIN-19569-4 class 4 (HD)
