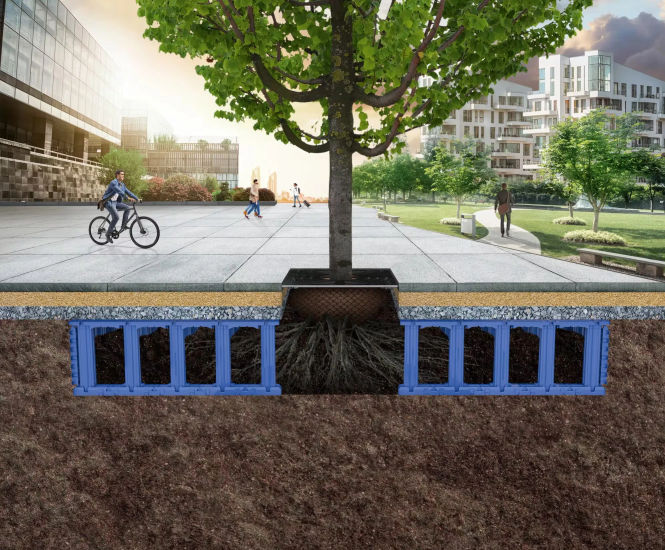

Wavin TreeTank - modular soil cell for urban trees

Wavin TreeTank is a modular subsoil cell system designed to support healthy tree growth in urban areas. Units create a stable void for tree roots, allowing access to water, air, and nutrients while preventing root damage to roads and pavements.

• Modular underground cellular structure for urban tree planting

• Prevents tree roots from damaging roads and pavements

• Allows roots access to water, air, and nutrients

• Lightweight units for easy handling and installation

• Configurable layout to suit different site requirements

• Withstands traffic loading

• Proven performance in European urban environments

Applications

Urban tree planting in streets, pavements, and public spaces

Installation

Units are installed around a void for the tree, anchored, and backfilled with non-compacted soil. Pipework for irrigation and ventilation is included. Suitable for fast and flexible installation.

Components

• TreeTank PP Unit 1200x600x600mm

• TreeTank PP Cover

• TreeTank HDPE Connection Plate

• TreeTank HDPE Substrate Funnel

Technical information
