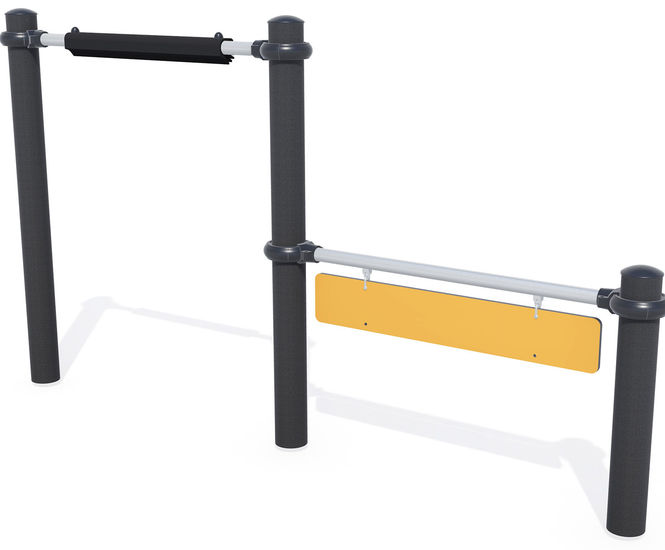

J5930® Low path - Ninja trail crawl and jump obstacle
J5930® is an outdoor play module designed for crawling and jumping. Made from painted galvanised steel, stainless steel, HPL panels, and recycled polyethylene: inclusive ninja trail module for children to crawl and jump; accommodates up to 2 users at once; accessible for users from 1.40m height; 2.35m length, 0.15m width, and 1.31m height; free
J5930® is an outdoor play module designed for crawling and jumping. Made from painted galvanised steel, stainless steel, HPL panels, and recycled polyethylene.
Inclusive ninja trail module for children to crawl and jump
Accommodates up to 2 users at once
Accessible for users from 1.40m height
2.35m length, 0.15m width, and 1.31m height
Free fall height of 0.60m for safety
Applications
School playgrounds
Public parks
Leisure parks
Community spaces
Recreational areas
Dimensions
Length 2.35m
Width 0.15m
Height 1.31m
Free fall height 0.60m
Materials
Painted galvanised steel posts 102mm diameter
Stainless steel tubes 40mm diameter
Painted aluminium caps and fixing collars
Coloured HPL panels 13mm thick
Passage tube made from 30% recycled rotomoulded polyethylene
Stainless or plated steel fixings with polyamide anti-vandal caps
Finish
Grained, slightly undulating surface for scratch resistance
