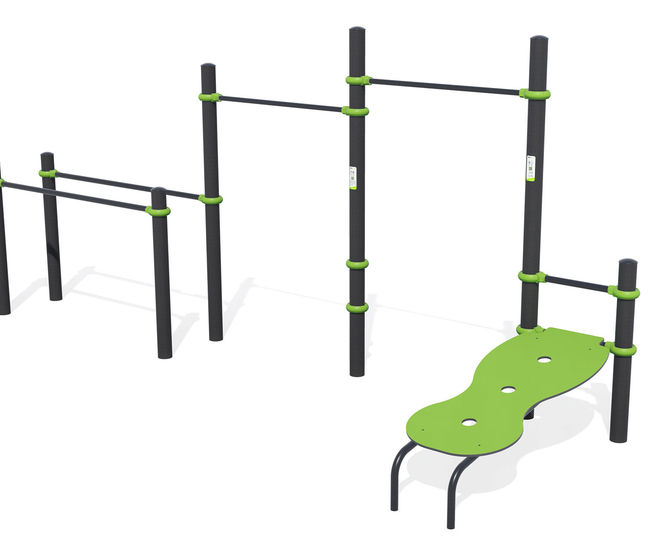

J5236 Parallel bars is an outdoor fitness station. Designed for calisthenic bodyweight exercises, it measures 5.19m long, 1.67m wide, and 2.32m high, with a free fall height of 1.10m. Made from painted galvanised steel, stainless steel, and HPL panels for durability and weather resistance.

  • Outdoor street workout for calisthenics exercises

  • Supports pull-ups, dips, push-ups, abs, and hanging activities

  • Designed for adults and teenagers

  • Bars with grained finish for increased scratch resistance and grip

Applications

  • Outdoor fitness areas in parks, schools, and community spaces

Dimensions

Length 5.19m

Width 1.67m

Height 2.32m

Free fall height 1.10m

Materials

Posts made from painted galvanised steel (102mm diameter)

Tubes made from electro-galvanised steel (34mm diameter) and stainless steel (40mm diameter) with epoxy paint

Caps and fixing collars made from painted aluminium

Panels made from 13mm thick HPL

Fixings made from stainless or plated steel with polyamide caps

Finish

Grained, slightly undulating surface for scratch resistance

Epoxy paint for improved grip

Installation

Requires 2 installers

Installation time 6 hours

Concrete volume 1.30m³
