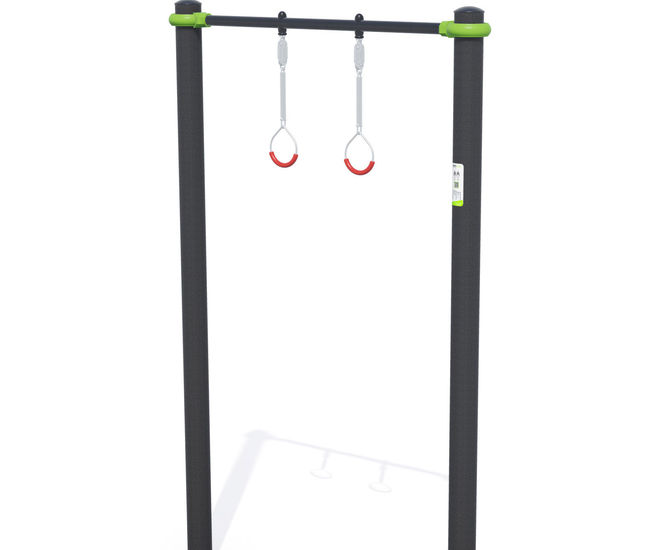

J5240 rings are outdoor fitness rings for users aged 14 and over, designed for pull-ups and hanging exercises. Accommodates 1 user at a time. Made from galvanised steel posts, stainless steel tubes, and rubber-coated steel rings. Unit measures 1.46m length, 0.15m width, 2.32m height. Free fall height is 0.70m.

  • Outdoor street workout rings for calisthenics and strength training

  • Suitable for pull-ups, dips and hanging exercises

  • Materials include galvanised steel, stainless steel, and rubber-coated rings

  • Compact footprint

  • Scratch-resistant grained finish on posts

  • Anti-vandalism polyamide caps on fixings

Applications

  • Outdoor fitness areas

  • Parks

  • Activity trails

Dimensions

Length 1.46m

Width 0.15m

Height 2.32m

Free fall height 0.70m

Materials

Posts made from painted galvanised steel, 102mm diameter

Tubes made from stainless steel, 40mm diameter, epoxy paint (RAL 9005)

Rings made from 7mm diameter galvanised steel covered with rubber

Chains made from stainless steel

Fixing collars and caps made from painted aluminium

Fixings made from stainless or plated steel with polyamide caps

Finish

Grained, slightly undulating surface for scratch resistance

Installation

Requires 2 installers

Installation time 2 hours

Concrete volume 0.40m3
