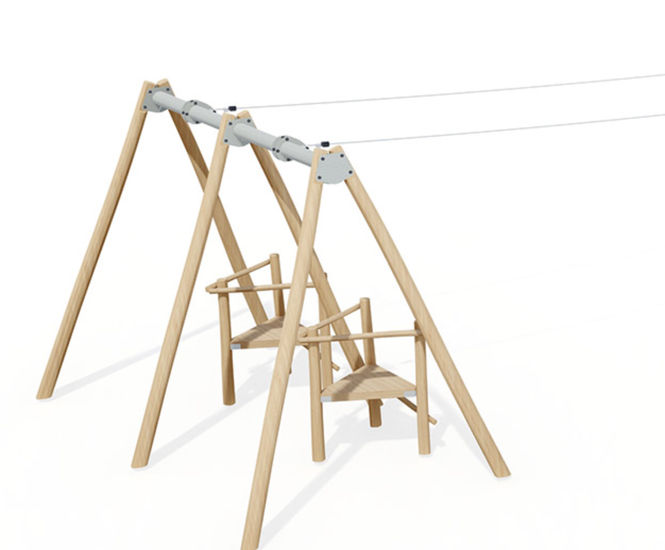

J522 is timber framed double flying fox designed for 2 children. The module measures 28.35m in length, 6.04m wide, and 3.93m high, with a free fall height of 1.40m. Built from sap-free Robinia wood and stainless steel, it features a 10mm galvanised steel cable and a shock-absorbing rubber seat.

  • Outdoor flying fox with 2 zip lines for level ground use

  • Accommodates 2 users aged 6 years and above

  • Made from naturally rot-proof Robinia timber and stainless steel

  • Low-noise polyamide trolley wheels and shock-absorbing rubber seat

  • Easy cable tension adjustment with ratchet system

  • Anti-vandal fixings with protective polyamide caps

  • EN 1176 certified

Applications

  • Public playgrounds and recreation areas

  • School playgrounds

  • Parks and leisure spaces

  • Campsites and holiday parks

  • Community play areas

Dimensions

Length 28.35m

Width 6.04m

Height 3.93m

Free fall height 1.40m

Surface area 173.00m2

Total weight 2626.17kg

Materials

Sap-free Robinia wood posts and platforms

Stainless steel trolley and fixings

Galvanised steel cable 10mm diameter

Polyamide trolley wheels and anti-vandal caps

Shock-absorbing honeycomb rubber seat

Galvanised steel supporting chain with plastic coating

Performance

Repairability score 9.17/10

Installation

Requires 2 installers

Estimated installation time 20hrs

Concrete volume 1.16m3

Sustainability

Recycled materials: 21.61%

Biosourced materials: 24.08%

Recyclable materials:60.39 %

Carbon impact: 3.87 KgCO²/Kg

Product accreditations

EN 1176
