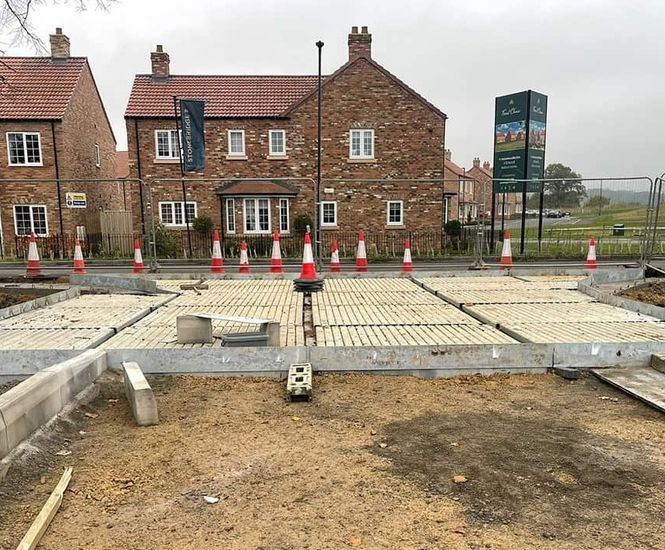

RB Highway RootBridge by Green Grid Systems is a modular root bridge system designed to create access roads into new developments. It can support dynamic loading from all highway traffic.

  • Modular root bridge system for highway traffic

  • Protects tree roots during construction projects

  • Supports 200kN point load

  • Sections measure 2m x 2m

  • Depth of 365mm

  • Surface finish suitable for paving or tarmac

  • Site-specific design for each project

Applications

  • Access roads for new developments

  • Highway crossings

  • Temporary or permanent road infrastructure

Dimensions

Section size 2m x 2m

Depth 365mm

Performance

200kN point load capacity

Finish

Pave or tarmac over only

Installation

Requires large helical piles with site testing for specification
