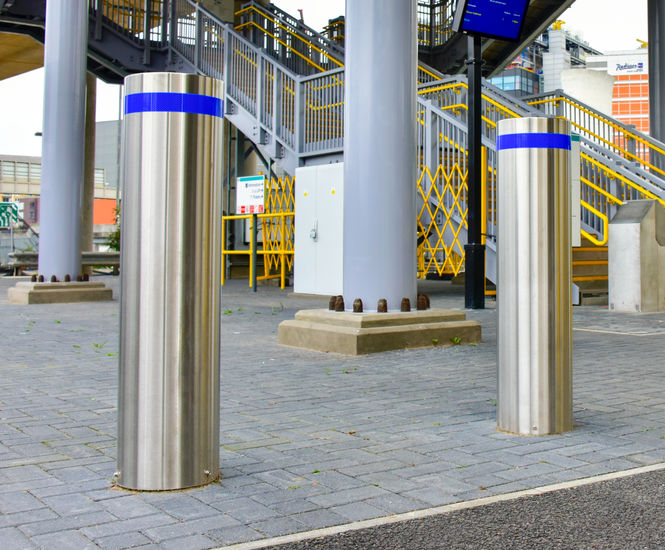

The Townscape PAS 68 bollards range encompasses Counter Terror Bollards in styles from modern to heritage, as well as Counter Terror Cycle stands and Counter terror Swing Barriers.

Townscape supply a range of PAS 68 and IWA 14-2 shallow and Ultra mount bollards for installations where it would be difficult to install a standard depth bollard foundation..

 WHAT IS PAS 68?

PAS 68 is a standard for vehicle security barriers and bollards designed to aid in terrorism prevention. The certification ensures that PAS 68-rated products can stop a 7.5-tonne vehicle traveling at speeds of up to 50 mph.

Specification

Bollard

SKU

Speed and Weight Rating Classification

Available Finishes

Foundation Depth

Sleeve Options

Height Above Ground

CT20 N1/01 159mm

VED/0020

30 MPH 3500kg PAS 68:2010 V/3500[N1]/48/90:0.0/0.0

Powder Coated or Galvanised

450mm

Stainless Steel or Polymer

1000mm

CT30 N2/01 219mm

VED/0009

30 MPH 7500kg PAS 68:2010 V/7500[N2]/48/90:0.0/0.0

Powder Coated or Galvanised

600mm

Stainless Steel or Polymer

1000mm

CT30SH N2 219mm

VED/0054

30 MPH 7500kg PAS 68:2010 V/7500[N2]/48/90:0.0/0.0

Powder Coated or Galvanised

400mm

Stainless Steel or Polymer

1000mm

CT30 N2/01 219mm Shallow

VED/0009S

30 MPH 7500kg PAS 68:2010 V7500[N2]/48/90:3.3/0.0

Powder Coated or Galvanised

300mm

Stainless Steel or Polymer

1000mm

CT30 N2/01 219mm Removable

VED/0009R

30 MPH 7500kg PAS 68:2010 V/7500[N2]/48/90:0.0/0.0

Powder Coated or Galvanised

600mm

Stainless Steel or Polymer

1000mm

CT40 N2/01 219mm

VED/0011

40 MPH 7500kg PAS 68:2010 V/7500[N2]/64/90:4.0/16.7

Powder Coated or Galvanised

600mm

Stainless Steel or Polymer

1000mm

CT40 N2/01 219mm Removable

VED/0011R

40 MPH 7500kg PAS 68:2010 V/7500[N2]/64/90:4.0/16.7

Powder Coated or Galvanised

600mm

Stainless Steel or Polymer

1000mm

CT40 N2/02 273mm

VED/0013

40 MPH 7500kg PAS 68:2010 V/7500[N2]/64/90.3.3/0.0

Powder Coated or Galvanised

750mm

Stainless Steel or Polymer

1000mm

CT40 N2/02 273mm Ultra Shallow Mount

VED/0013USM

40 MPH 7500kg PAS 68:2010 V/7500[N2]/64/90:3.3/0.0

Powder Coated or Galvanised

125mm

Stainless Steel or Polymer

1000mm

CT50 N3/02 273mm

VED/0015

50 MPH 7500kg PAS 68:2010 V/7500[N3]/80/90.10.6/11.1

Powder Coated or Galvanised

750mm

Stainless Steel or Polymer

1000mm

CT50 N2/A 273mm Shallow Mount

VED/0015SM

50 MPH 7200kg IWA 14 V/7200/80/90:8.7

Powder Coated or Galvanised

230mm

Stainless Steel or Polymer

1000mm

CT50 N2 273mm Shallow Low Penetration

VED/0015SMSC

50 MPH 7200kg IWA14 V/7200/80/90:3.8

Powder Coated or Galvanised

200-300mm

Stainless Steel or Polymer

1000mm

CT50 N3/02 273mm Removable

VED/0015R

50 MPH 7500kg PAS 68:2010 V/7500[N3]/64/90.10.6/11.1

Powder Coated or Galvanised

750mm

Stainless Steel or Polymer

1000mm

Materials

Stainless Steel (316)

Mild Steel

Specialist Grade Steel
