Gordon Low manufacture water storage tank Liners from EPDM or Butyl rubber, designed for capacities from 1,600 to over 865,000 litres. Liners are WRc approved for drinking water use, horticulture, aquatics and fish keeping and meet BS6920 standards.

  • Water storage rubber liners

  • Capacities from 1,600 litres to over 865,000 litres

  • Choice of 0.75mm or 1.0mm SealEco EPDM (Greenseal) or Butyl liners

  • WRc approved Butyl liners for drinking water applications

  • Suitable for emergency, agricultural, and aquatics use

  • Above-ground galvanised steel tank kits and replacement liners available

Applications

  • Agriculture water management

  • Sports ground irrigation

  • Emergency water supply for aid agencies

  • Irrigation projects

  • Drinking water storage

Dimensions

Capacity 1,600 litres to over 865,000 litres

Materials

0.75mm or 1.0mm SealEco EPDM (Greenseal) or Butyl rubber liners

Performance

EPDM

Tensile strength 9.0 N/mm2

Water permeability < 10-6 m3/(m2 *day)

Static puncture 1.0mm: 0.75 kN

Butyl

Tensile strength 8.5 N/mm2

Water permeability < 10-6 m3/(m2 *day)

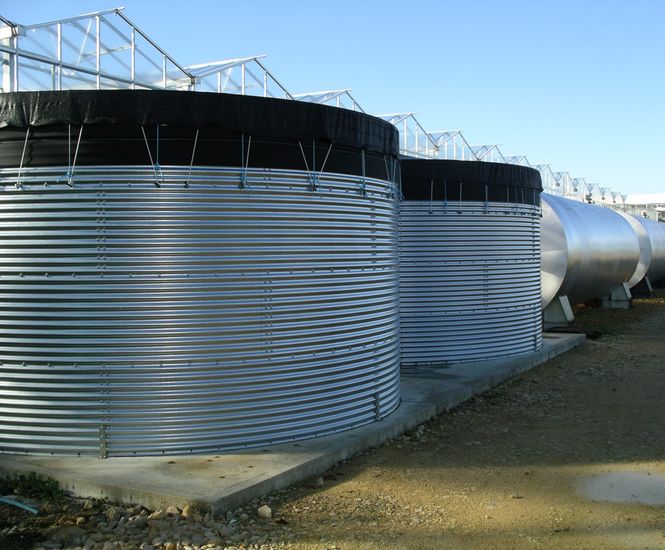

Water Storage Tank Kits

Gordon Low also supply modular water tank kits. Constructed from BS2989 compliant cold-rolled galvanised steel and supplied with a 0.75mm or 1.0mm EPDM or Butyl rubber liner, kits are available for 1,600 litres to over 865,000 litres and include all fittings for on-site installation.

Manufacture

Made in the UK

Product accreditations

WRc approved Butyl liners

BS6920 compliant for drinking water
