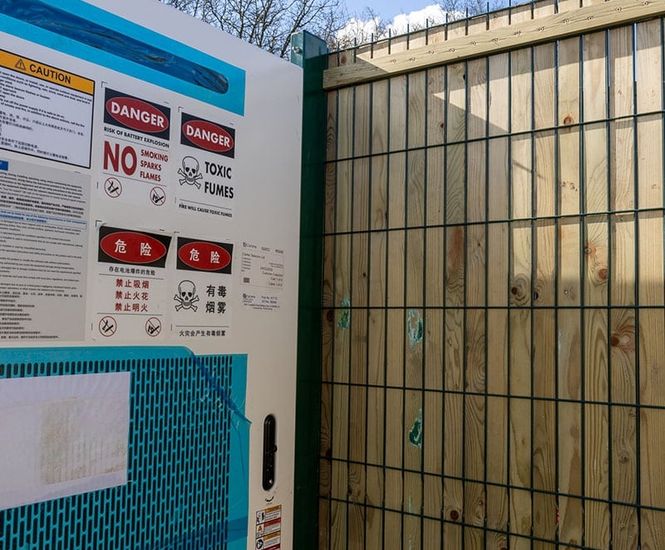

SolarGard Pulsar Plus by Alexandra Security is a perimeter fencing system for energy storage and compounds, made from steel panels with V-shaped folds and timber inserts with anti-climb features and tamper-resistant fixings. Three height variations: 1.8m, 2.0m, and 2.4m.

  • Perimeter fencing system for energy storage and battery storage compounds

  • Anti-climb V-mesh design with timber inserts between apertures

  • Panels secured with full-length metal clamp bars and vandal-resistant fixings

  • Conforms to British Standard 1722-14 for boundary fencing

  • 40-year guarantee for long-term durability

  • Colour options: RAL 6005 Moss Green, RAL 9005 Black; marine powder coating for coastal sites

Applications

  • Energy storage compound security

  • Solar farm perimeter fencing

  • Sites requiring privacy and anti-climb protection

  • Coastal installations needing corrosion resistance

Dimensions

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Centres (mm)

No. ‘V’ Bars per Panel

Overall Length of Post (mm)

Post Size (mm)

Ends/Inters (1 Clamp)

Corners (2 Clamps)

1.8

1,730 x 2,500

2,510

3

2,550

100 x 50

4

8

2.0

1,930 x 2,500

2,510

3

2,800

100 x 50

4

8

2.4

2,330 x 2,500

2,510

3

3,250

100 x 50

5

10

Materials

Steel panels with timber inserts

Finish

Powder coated in RAL 6005 Moss Green or RAL 9005 Black

Double-layer marine powder coating for coastal protection

Options and variations

Three heights: 1.8 m, 2.0 m, 2.4 m

Base-plated or cranked posts

Bespoke CAD drawings

Performance

Anti-climb design

40-year guarantee

Privacy panels

Marine coating for saltwater resistance

Installation

Panels secured to posts with full-length clamp bars and fixings

Panels can be stepped to follow ground contours

Vandal-resistant security fixings

Product accreditations

Conforms to BS 1722-14: 2017

Warranty

40 years
