Protek® Spectator Rail from Alexandra Security is made from galvanised steel mesh and rail, and is designed to separate players and spectators in sports areas while maintaining clear visibility. Mesh options include 656 or 868 standard and rebound types, with optional kickboards and matching gates.

  • Perimeter fence system for sports pitches and courts

  • Top rail for leaning and lower mesh to prevent ball escape

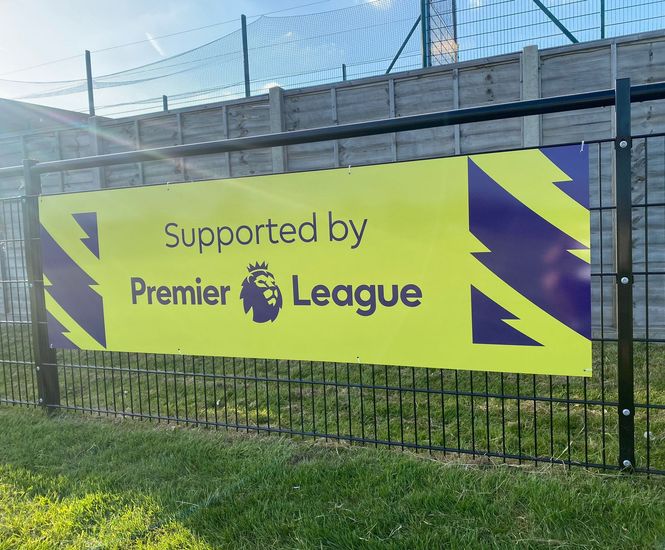

  • Mesh panels allow for advertising board attachment

  • Powder coated in over 1000 RAL colours

  • Manufactured to BS 4102 and galvanised to BS EN 10244-2:2001

  • Matching single and double-leaf gates with padlock slide bolt and drop bolt

  • Optional kickboards for hockey and cricket use

  • Supplied with supporting CAD drawings and 15-year guarantee

Applications

  • Football, rugby, hockey and cricket pitches

  • Tennis courts

  • Running tracks

  • Sports grounds with public viewing areas

Specification

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Size (mm) Ends/Inters

Post Size (mm) Internal Corner

Post Size (mm) External Corner

Overall Length of Post (mm)

No. of Fixings – Ends/Inters (1 Clamp)

No. of Fixings – Corners (2 Clamps)

1.2

1,030 x 2,506

60 x 40

100 x 100

100 x 100

1,800

4

8

Materials

Mesh panel wire made from steel to BS 4102

Posts made from steel to BS EN 10210-2:1997

Finish

Galvanised to BS EN 10244-2:2001

Powder coated to BS EN 13438:2005 (minimum 100 micron)

Options and variations

Standard mesh panel in 868 or 656

Rebound mesh panel in 868 or 656

Optional kickboards

Performance

Weld strength is 75% of minimum tensile strength (540-690 N/m²)

Long-lasting corrosion protection

Installation

Post and full-length clamp bar fixing system

Panels can be stepped to follow ground contours

Vandal-resistant security fixings

Product accreditations

Mesh manufactured to BS 4102

Galvanised to BS EN 10244-2:2001

Posts to BS EN 10210-2:1997 and BS EN 10346:2009

Powder coating to BS EN 13438:2005

Warranty

15-year guarantee

Technical support

Supporting CAD drawings supplied for approval before manufacture
