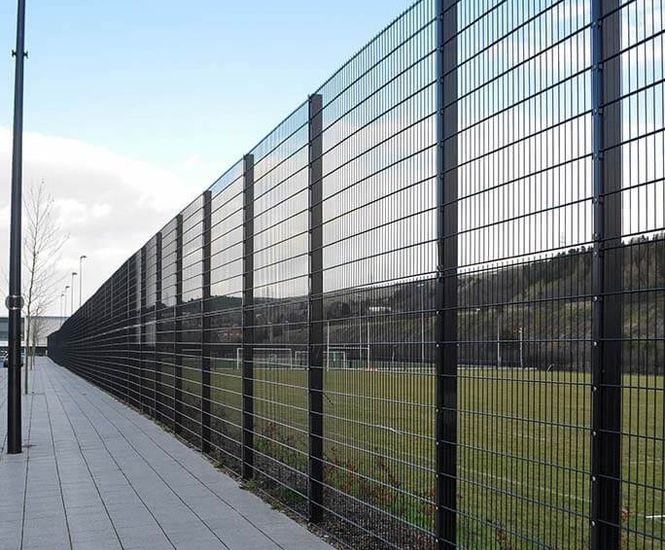

Protek® 868 Clamp is a flat panel mesh fencing system made from twin 8mm horizontal wires welded to a 6mm vertical wire, designed for perimeter security in commercial and recreational settings. Panels are available in 1.2, 1.8, 2.0, 2.4 and 3.0m heights, each with specific post sizes and fixings.

  • Flat panel mesh fence system with twin horizontal wires and single vertical wire

  • Panels can be stepped to follow ground contours

  • Vandal-resistant security fixings

  • Panels can be inverted for a flat top

  • Powder coated and galvanised for durability

  • Easy installation with post and clip system

Applications

Industrial estates

Retail parks

Industrial buildings

Playgrounds

Sports enclosures

Specification

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Centres (mm)

Overall Length of Post (mm)

Post Size (mm)

Ends/Inters (1 Clamp)

Corners (2 Clamps)

1.2

1,230 x 2,506

2,520

1,850

60 x 40

4

8

1.8

1,830 x 2,506

2,520

2,400

60 x 40

6

12

2.0

2,030 x 2,506

2,520

2,700

60 x 40

6

12

2.4

2,430 x 2,506

2,520

3,200

60 x 40

7

14

3.0

3,030 x 2,506

2,520

3,750

80 x 40

9

18

Materials

Mesh panel wire made from steel to BS 4102

Posts made from steel to BS EN 10210-2:1997

Finish

Galvanised to BS EN 10244-2:2001 class D (mesh), BS EN 10346:2009 (posts)

Powder coated to BS EN 13438:2005 (minimum 100 micron)

Options and variations

Panels can be inverted for flat top

Other heights available on request

Installation

Panels fixed with posts and clips, allowing for stepping on uneven ground

Vandal-resistant security fixings

Product accreditations

Mesh panel wire to BS 4102

Galvanising to BS EN 10244-2:2001 class D and BS EN 10346:2009

Powder coating to BS EN 13438:2005
