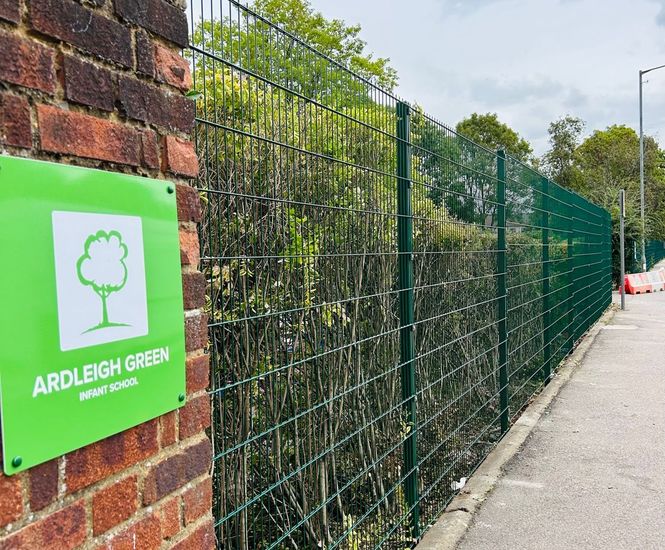

Protek® 868 Clip by Alexandra Security is a perimeter fencing system made from twin 8mm horizontal and vertical wires, forming a mesh that is difficult to cut or climb. Panels are joined with metal clips and pinned into posts with pre-drilled holes. Heights range from 1m to 3m per panel.

  • Twin-wire mesh fence system for secure boundaries

  • Panels use twin 8mm horizontal wires for added strength

  • Small mesh gaps deter climbing and cutting

  • Panels joined with metal clips and pinned into posts

  • Heights from 1m to 3m in single panels

  • Galvanised finish with optional polyester powder coating

  • 15-year guarantee on mesh fencing

Applications

Car parks

Playgrounds

Sports arenas

Perimeter security for commercial or public sites

Specification

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Centres (mm)

Overall Length of Post (mm)

Post Size (mm)

No. of Clips Per Post

No. of Clips Per Corner

1.2

1,230 x 2,506

2,520

1,800

60 x 60

4

8

1.8

1,830 x 2,506

2,520

2,400

60 x 60

5

10

2.0

2,030 x 2,506

2,520

2,600

60 x 60

6

12

2.4

2,430 x 2,506

2,520

3,100

60 x 60

7

14

3.0

3,030 x 2,506

2,520

3,750

60 x 60

8

16

Materials

Mesh panel wire made from steel

Posts made from steel

Finish

Galvanised to BS EN 10244-2:2001 class D

Optional polyester powder coat to BS EN 13438:2005 (min 100 micron)

Standard finish green; black also available

Options and variations

Panels can be inverted for flat top

Other heights available on request

Performance

Weld strength 75% of minimum tensile strength (540-690 N/m2)

Installation

Posts available as dig-in or bolt-down

Panels can be stepped to follow ground contours

Vandal resistant security fixings

Manufacture

Mesh panel wire to BS 4102

Post material to BS EN 10210-2:1997

Posts galvanised to BS EN 10346:2009

Warranty

15 years

Technical support

CAD drawings available for design sign-off
