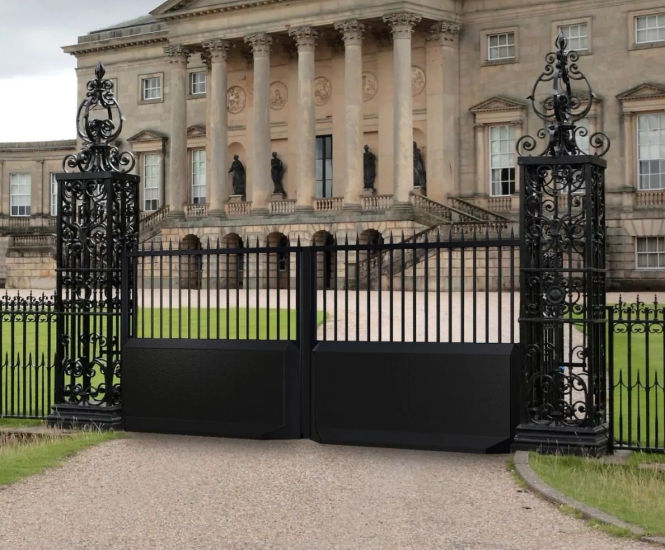

Heald Matagate is a surface-mount perimeter security gate system designed to deliver crash-tested vehicle mitigation in locations where excavation is limited or not possible. Made from steel with a hot dip galvanised base, Matagate is dual crash-tested to IWA 14-1 standards and continues to operate after impact. Customisable in size, colour and branding, it integrates with architectural paving and supports both surface- and ultra-shallow-mount installations.

  • Automatic security gate system for vehicle mitigation in challenging or retrofit locations

  • Dual crash-tested to IWA 14-1:2013 at 7.2T, 40mph and 50mph, with continued operation after impact

  • Ultra-shallow mount option for seamless integration with architectural paving

  • Made from steel with hot dip galvanised base and anti-slip coating

  • Customisable colours, branding and gate toppers

  • Electromechanical operation for energy efficiency and low noise

  • Emergency Fast Operation (EFO) and lighting options

  • Enhanced drainage and debris collectors supplied as standard

Applications

  • Urban perimeter security

  • Critical infrastructure protection

  • Event venues and stadia

  • Transport hubs

  • Commercial and public buildings

  • Temporary or retrofit security upgrades

Dimensions

Ultra-shallow mount paving trays: 110mm and 80mm depth

Reinforced concrete foundation: 150mm depth

Base structure: less than 160mm depth

Performance

HT2

  • 7.2T @ 40mph

  • Dual-tested at 64kp (40mph)

  • IWA 14-1: 2013 Bollard V/7200[N2A]/64/90:0.1 (7.2T @ 40mph)

  • NPSA Vehicle Attack Delay Rating Standard (VADS) Rating

HT3

  • 7.2T @ 50mph

  • Dual-tested at 64kp (40mph) + 80kph (50mph)

  • IWA 14-1:2013 Bollard V/7200[N3C]/64/90:1.3 (7.2T @ 40mph)

  • IWA 14-1:2013 Bollard V/7200[N2A]/80/90:3.2 (7.2T @ 50mph)

  • TCPNI Vehicle Attack Delay Standard (VADS) rating

Materials

Steel

Hot dip galvanised base

Colours

Powder coated in any RAL colour

Finish

Durable anti-slip coating

Options and variations

Surface mount or ultra-shallow mount installation

Architectural Paving System (APS) trays: 110mm and 80mm depth (other depths on request)

Lighting

Emergency Fast Operation (EFO)

Bespoke gate toppers

Custom branding

Installation

Surface-mount installation with no extensive excavation or pinning

Ultra-shallow mount installation with reinforced concrete foundation (150mm)

Multiple drainage points and ducting connection options

Optional heat tracing for year-round operation
