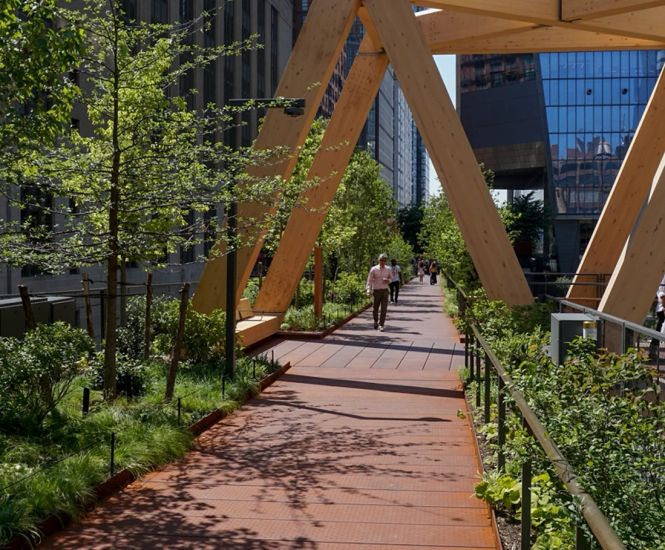

Dotsdeck™ decking profiles for bridges are made from Corten steel plate with a regular pattern of raised round dots for extra slip resistance. Designed for bridges and similar structures, these profiles are invisibly clamped to the frame and supplied with mounting hardware. Available in multiple widths and lengths up to 300 cm, the range is suitable for long-lasting, low-maintenance applications.

  • Decking profiles with raised dot pattern for improved grip

  • Made from durable Corten steel for extended lifespan

  • Multiple width options with two, four, or five rows of notches

  • Maximum board length of 300 cm

  • Invisibly attached by clamping to the frame

  • Mounting hardware included

Applications

  • Pedestrian bridges

  • Cycle bridges

  • Walkways

  • Public infrastructure

  • Outdoor decking in high-traffic areas

Dimensions

Maximum length 300 cm

Maximum spacing 150 cm (centre-to-centre)

Width options: 180 mm, 300 mm, 360 mm

Height 4 cm

Materials

Made from Corten steel plate

Installation

Clamped to frame with included mounting hardware
