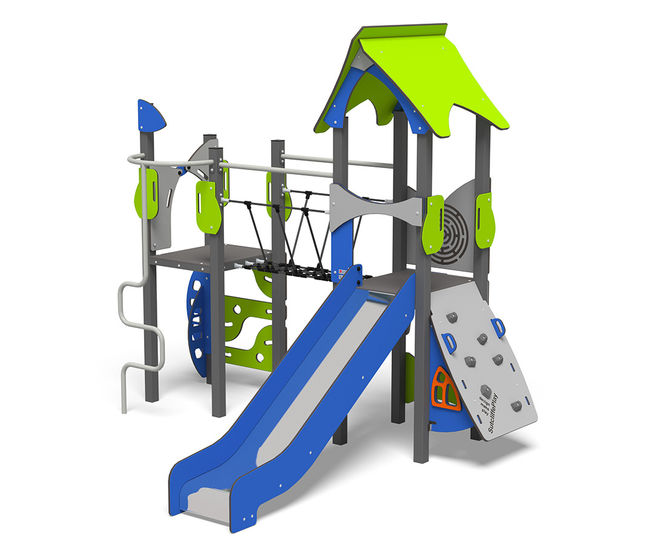

Gnome Multi Play Unit is a compact metal climbing frame with slide, designed for children aged 3 to 8. Two 1.2m high towers, one with a roof, are connected by climbing elements and a rope bridge, with 13 play activities including a house, shop, finger maze, and ground-level seating. Accommodates up to 13 users and supports physical, social, imaginative, and intellectual play.

  • Compact climbing frame with slide and two towers for ages 3–8

  • 13 integrated play activities encourage varied play and social interaction

  • Accessible from ground level, suitable for all surfacing

  • Ground-level seating and under-deck play space maximise use of footprint

  • Stainless steel slide and powder coated steel structure for durability

  • Accommodates up to 13 users at once

  • Colourful panels and themed design elements enhance visual appeal

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Nurseries and early years settings

  • Community centres

Dimensions

Area 26.53m2

Perimeter 19.84m

Maximum height 1.2m

Performance

HIC 1.2m

Materials

19mm thick HDPE panels

80mm x 80mm powder coated steel posts with 3mm wall

50 x 30mm powder coated box steel floors

15mm thick grip profiled HDPE floor panel

38mm x 10swg powder coated steel tube supports

Stainless steel slide

Colours

Posts and floors warm grey (RAL 7022)

Poles and supports light grey (RAL 7035)

Panels blue, pistachio green, light grey, orange

Sustainability

HDPE is sustainably sourced and recyclable

Stainless steel contains 85–90% recycled content

Accreditations

Certificate available
