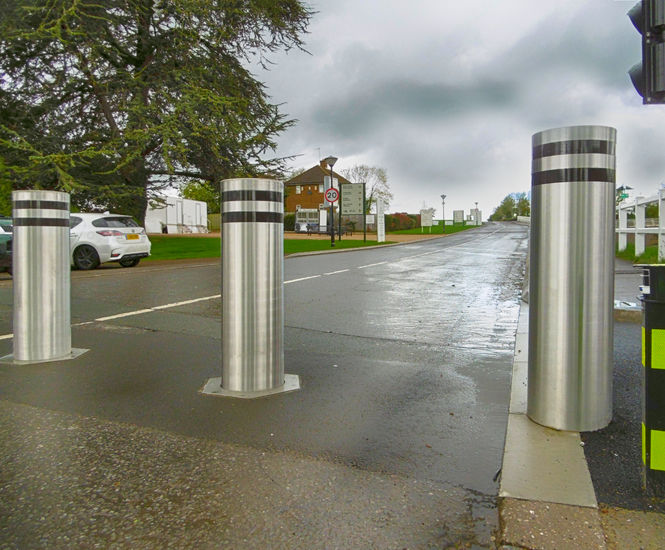

Terra Universal by Frontier Pitts is an automatic rising bollard system for hostile vehicle mitigation, impact-tested to IWA 14 standards to stop a 7.2-tonne vehicle at 50mph (80kph). Made from S355 structural steel, it features interchangeable sleeves to match static bollard diameters, a compact footprint, and a hexagonal top plate with optional LED lighting.

  • Automatic rising bollard system for vehicle impact protection

  • Impact tested to IWA 14, stopping 7.2t at 50mph (80kph)

  • Interchangeable sleeves for design flexibility

  • Hydraulic drive with 100% duty cycle

  • Compact installation with reduced steel use

  • Hexagonal top plate and optional LED lighting

  • Compatible with access control and safety systems

Applications

  • Perimeter security for commercial buildings

  • Government and military sites

  • Critical infrastructure protection

  • Public spaces and pedestrian zones

  • Transport hubs and airports

  • Architectural projects requiring discreet security

Dimensions

Lift height: 1000mm

Sleeveless diameter: 245mm

Performance

Impact-tested to IWA 14: V/7200[N2A]/80/90:6.3

Normal operating speed: 6–10 seconds

Extra Fast Operation: up to 3 seconds

100% duty rating

Materials

Made from S355 structural steel plate

Finish

Polyester powder coated as standard

Optional powder coated or stainless steel sleeves

Optional anti-slip paint for top plate

Options and variations

Accumulator for power failure operation

Manual hand pump

High security cabinet

Anti-tamper alarms

LED cateye lighting

Installation

Simple mesh pocket installation

1200mm spacing between upright bollard faces to meet IWA14-2

Accreditations

Secured by Design

BRE Global Civil Engineering
