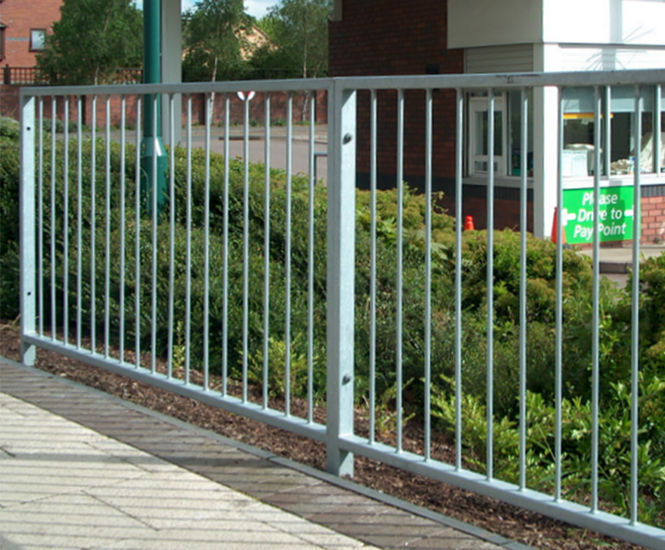

Pedestrian Guardrail is a barrier system made from galvanised mild steel with in-line bars, designed to guide and protect pedestrians while maintaining visibility. Panels are available up to 2 metres wide, with vertical and horizontal rails and solid infill bars set at regular centres. Options include staggered, standard, racked, and radius infills, with surface or root fixing.

  • Pedestrian barrier system for guiding and protecting foot traffic
  • Made from galvanised mild steel for durability
  • In-line bar design maintains clear sightlines
  • Stock panels up to 2m wide, with custom lengths available
  • Choice of infill patterns and fixing methods
  • Complies with BS 7818:1995 Class 2a / 3c
  • Can be powder coated to any RAL colour

Applications

  • Urban streets and pavements
  • School and public building perimeters
  • Transport hubs and stations
  • Car parks and pedestrian crossings
  • Retail and commercial developments

Dimensions

Panel width 2000 mm

Post height 1000 mm

Materials

Galvanised mild steel

Finish

Galvanised to BS EN1461

Optional polyester powder coating to any RAL colour

Options and variations

Staggered, standard, racked, and radius infill patterns

Surface fixed or root fixed installation

Custom lengths up to 2 metres

Installation

Joined with 2 x M10 bolts per rail

Surface or root fixed

Accreditations

BS 7818:1995 Class 2a / 3c

Galvanised to BS EN1461
