Hebden X Grid Heavy Duty ground reinforcement grid is made from 100% recycled plastic and is designed to stabilise surfaces in commercial outdoor spaces, supporting pathways, driveways, and areas with heavy foot or vehicle traffic. With a 420 tonnes/m² loading capacity and DIN 1072 compliance, is ideal for roads and footbridges. Its robust design makes it the top choice for areas with regular commercial traffic.

Approved for wheelchair access and Part M compliant, it helps prevent erosion and surface flooding while maintaining a natural appearance.

  • Ground reinforcement grid for stabilising outdoor surfaces in parks, estates, and public spaces

  • Made from 100% recycled plastic for sustainable construction

  • Approved as a Sustainable Urban Drainage System (SUDS) to reduce surface flooding

  • Part M compliant for wheelchair accessibility

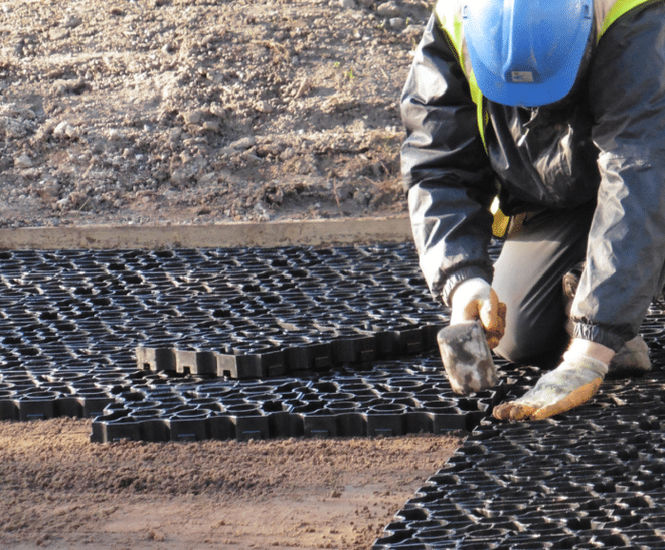

  • Supplied in 1m² pre-clipped sections for straightforward installation

  • Minimum order quantity of 25m²

  • Suitable for use with heavy footfall, vehicles, and livestock

Technical specification

Dimensions

33cmx 33cm x 4cm

Wall Thickness, Wall height

3mm, 40mm

Weight per Tile

0.57 kg

Weight per m2

5.13kg

Material

100% Recycled Plastic (UK Sourced)

Connection method

Slot & Peg Quick snap connection

Cell Profile

Cylinders 55mm Nominal ID 63mm OD 93%

Capacity: Natural Stability

Up to 350 tonnes/m2 Environment

Environment Compatibility

Temperature range -50°C up to 90°C

Solubility

Environmentally neutral in accordance with DIN 38412 Resistant against acid and leaching, alcohol, oil and petrol (strewing salt, ammonia, acid rain etc.)

Surface Finishes

Gravel up to 20mm Angular in accordance with NBS Section Q23 Grass Seeding / Turfingin accordance with NBS Section Q30

Expected Life Sub

25 years with 10 years Manufacturer Guarantee*

Base Preparation

In accordance with BS7533-

DDACompliance

3 Part M Building

Applications

  • Pathways and trails in parks and wildlife trusts

  • Driveways and car tracks

  • Livestock gateways

  • Public pathways with high foot traffic

  • Areas requiring surface stabilisation and erosion control

Dimensions

1m² sections

9 grids per 1m² pack

50m² per pallet

Materials

100% recycled plastic

Performance

Approved for public wheelchair access

Compliant with Part M regulations

Sustainability

Made from 100% recycled content
