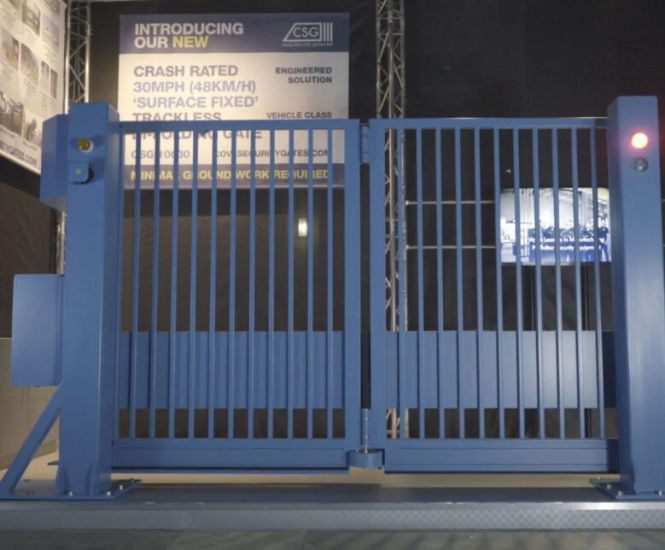

CSG 10630 Crash Rated ‘Surface Fixed’ Bi-Folding Gate from Cova Security Gates is a surface-mounted, automated bi-folding gate designed to withstand vehicle impact at 30mph (48km/h) by a 3500kg car or light van. For locations where excavation is not possible, such as underground car parks.
Surface-fixed, crash rated bi-folding gate for hostile vehicle mitigation
Withstands 30mph (48km/h) impact by 3500kg vehicle (Class N1)
Suitable for installation on existing slabs with 250mm thickness
Rack and pinion or chain drive options
Mechanical locking system
Operates in low and high weather extremes
Hand built in the UK
RAL colour options
Applications
Underground car parks
Sites with limited slab depth
Government buildings
Rail stations
Stadiums
Embassies
Commercial and public buildings
Performance
Withstands 3500kg vehicle impact at 48km/h
8-14s open and close cycle
Materials
Steel
Finish
Shot blast to SA 2.5
Primed: galvanised or zinc primer
PPC to any RAL
Installation
Surface fixed to road or car park using concrete anchors; requires minimum 250mm base slab thickness; no foundation excavation needed
