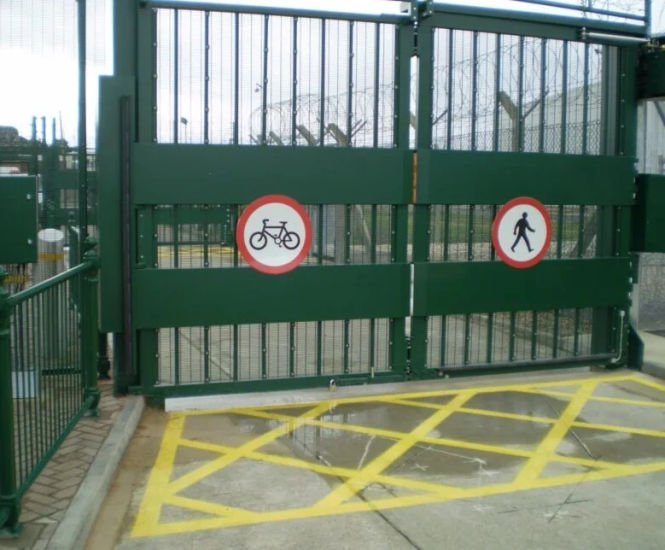

CSG 10640/50 crash tested bi-folding gates are high-security, trackless access barriers made from steel, designed to protect sites from vehicle-borne attacks. Certified to PAS 68 and IWA 14-1 standards, gates use hydraulic drive system for rapid opening and closing, and integrate discreetly with building perimeters.

  • Crash tested bi-folding security gate for vehicle impact protection

  • Certified to PAS 68, IWA 14-1, and LPS 1175 standards

  • Hydraulic drive system with 9 second opening and 11 second closing times

  • Trackless design for seamless integration with perimeters

  • Minimal foundation depth of 380mm

  • Compatible with security toppings, cladding, or mesh facia

  • Continuous operation with 100% duty cycle

Applications

  • Critical National Infrastructure

  • Government buildings and embassies

  • Railway stations

  • Stadiums and event venues

  • Airports and aviation facilities

  • Commercial and industrial sites

  • Public and private land access control

Dimensions

  • Width: 4200mm

  • Effective height: up to 3500mm

  • Foundation depth: 380mm

Performance

  • Crash tested to PAS 68 and IWA 14-1 standards

  • Tested to withstand 7500kg at 40–50 mph

  • Opening time 9 seconds

  • Closing and locking time 11 seconds

  • Continuous 100% duty cycle

Materials

Made from steel

Options and variations

  • Widths from 4200mm to 6000mm

  • Rack & pinion or chain drive

  • Cladding or mesh facia options

Accreditations

  • PAS 68

  • IWA 14-1

  • LPS 1175
