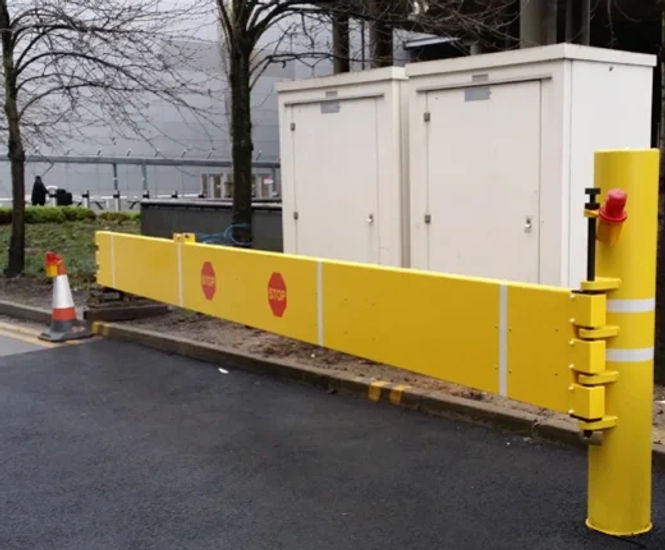

Miti-Gate® is a manual PAS 68 crash tested barrier made from aluminium, designed for locations with infrequent vehicle access that require protection from vehicle-borne threats.

Installed between static crash rated bollards, it uses a patented arrestor system and can be hinged, bi-parting, or fully removable.

  • Manual crash tested barrier for infrequent vehicle access

  • Made from aluminium with a patented arrestor system

  • Clear width up to 10 metres in double leaf

  • 215mm foundation depth for hinge and receptor posts

  • Can be hinged, bi-parting, or fully removable

  • CPNI Vehicle Attack Delay Standard (VADS) rating at 40mph/64kph (model CSG 10940)

  • Manual operation, suitable for all weather

  • Customisable finish, including RAL colours and branding

Applications

  • Airports

  • Sports stadiums

  • Public areas and mass gathering spaces

  • Rail stations

  • Government buildings

  • Leisure facilities and schools

  • Business and recreation venues

Dimensions

  • Maximum width: 10,000mm

  • Nominal height: 1100mm from FFL

Performance

PAS 68 crash rated

CPNI Vehicle Attack Delay Standard (VADS) at 40mph/64kph (model CSG 10940)

Materials

Aluminium enclosure

Colours

Custom RAL colours available

Finish

  • Shot blasted to SA 2.5

  • Primed: galvanised or zinc primer

  • PPC topcoat to any RAL

Manufacture

Hand built in the UK

Accreditations

PAS 68 crash rating

CPNI Vehicle Attack Delay Standard (VADS)
