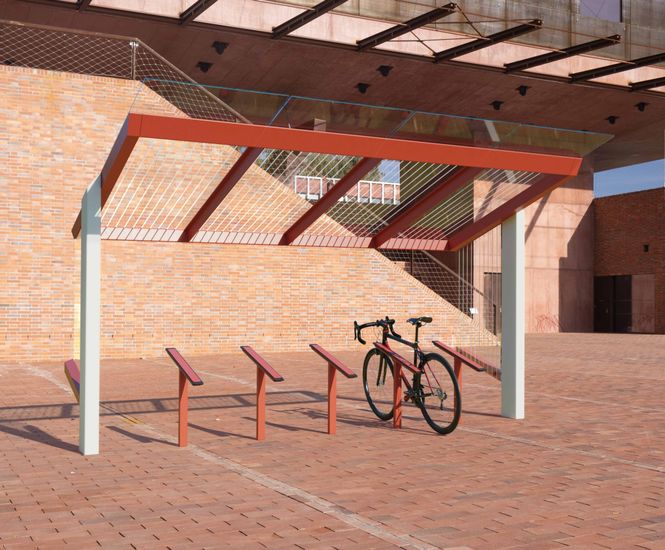

The Egoe X2-V410-SS provides shelter for 10 bicycles.

Specification

  • Supporting steel structure

  • Roof and walls made of glass with printing

  • Frame: welded closed steel profiles and sheets with anticorrosive protective zinc layer and a powder coating. The colour in a fine matt texture can be selected according to the RAL samples.

  • Walls: 8mm-thick ESG tempered safety glass with printing.

  • Roof: 12mm-thick VSG ESG laminated glass with printing.

  • Flexible anchoring of the glass elements to the structure.

  • Rainwater or other precipitation runs off the rear edge of the roof onto the ground.

  • Installation: anchor to concrete subfloor under the pavement.

Dimensions

  • Height: 2470mm

  • Width: 3975mm

  • Weight: 1272kg
