Egoe X1-V310-SS-002400 - steel and glass cycle shelter (10 bikes)
The Egoe X1-V310-SS-002400 provides shelter for 10 bicycles. Specifications: supporting steel structure; roof and walls made of glass with printing; frame - welded closed steel profiles and sheets with anticorrosive protective zinc layer and a powder coating. The colour in a fine matt texture can be selected according to the RAL samples
Click for full image

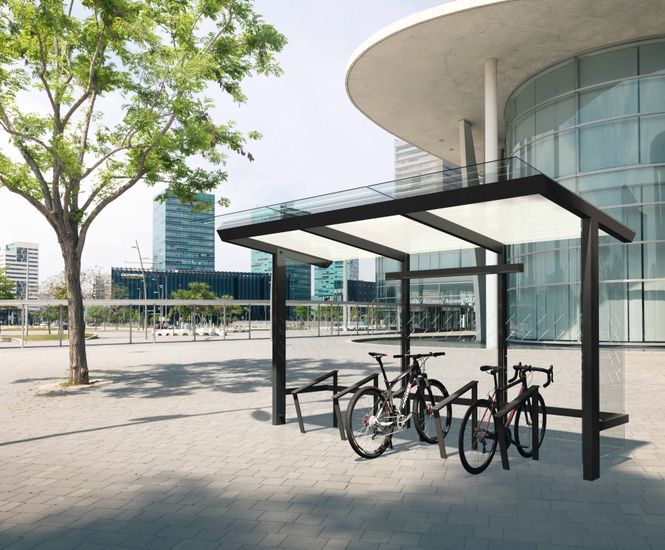

Egoe X1-V310-SS-002400 steel and glass cycle shelter for 10 bikes (bike stands are not included)
The Egoe X1-V310-SS-002400 provides shelter for 10 bicycles.
Specification
Supporting steel structure
Roof and walls made of glass with printing
Frame: welded closed steel profiles and sheets with anticorrosive protective zinc layer and a powder coating. The colour in a fine matt texture can be selected according to the RAL samples.
Walls: 8mm-thick ESG tempered safety glass with printing.
Roof: 12mm-thick VSG ESG laminated glass with printing.
Flexible anchoring of the glass elements to the structure.
Rainwater or other precipitation runs off the rear edge of the roof onto the ground.
Installation: anchor to concrete subfloor under the pavement.
